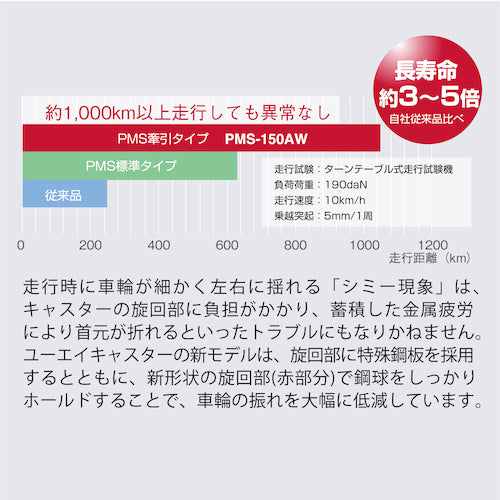

Catalog number: PMS-150WBLB(R)-G Features: ● Unique design achieves a running distance three times longer than that of general U-EI casters. ● Running costs can be significantly reduced by reducing the number of replacements. ● Uses gray rubber wheels that have excellent running properties and do not leave running marks on the floor. Applications: ● For carts that need to move heavy objects easily. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 40 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 94-87 ● Mounting pitch Y (mm): 94-87 ● Mounting hole diameter P (mm): 11 Material/Finish: ● Metal fittings: Steel ● Metal fitting surface treatment: Trivalent chromium finish ● Wheels: Rubber (B included) (gray)
