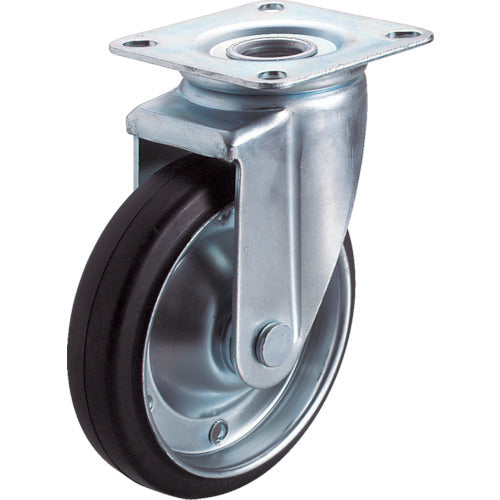

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 130mm, J Type, J2 Type, Mounting Dimensions 80x80 (75x75), WJ2-130, 1 pc

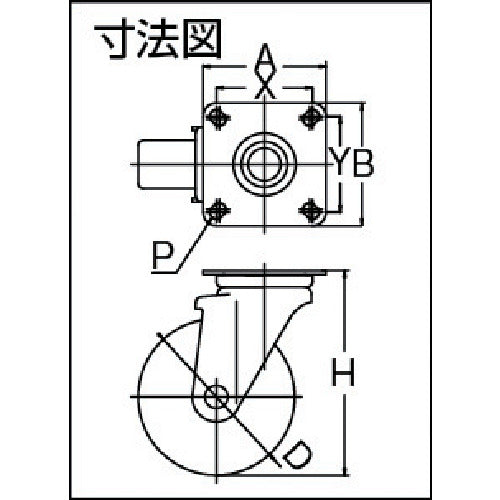

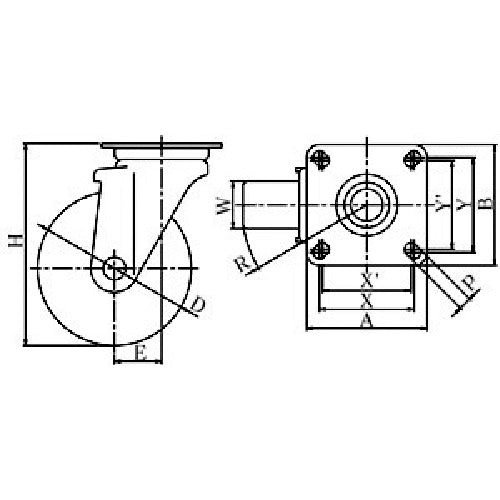

Catalogue number: WJ2-130 Features: ● The mounting pitch is the same for the free-mounting, free-mounting with stopper, and fixed types. ● Caster with standard specifications for basket carts. Applications: ● Ideal for trolleys and wagons. Specifications: ● Wheel diameter D (mm): 130 ● Type: Free-mounting ● Allowable load (daN): 160 ● Allowable load (kgf): 163.2 ● Wheel width (mm): 40 ● Mounting height H (mm): 170 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1600 ● Free-mounting ● Plate type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, rubber
