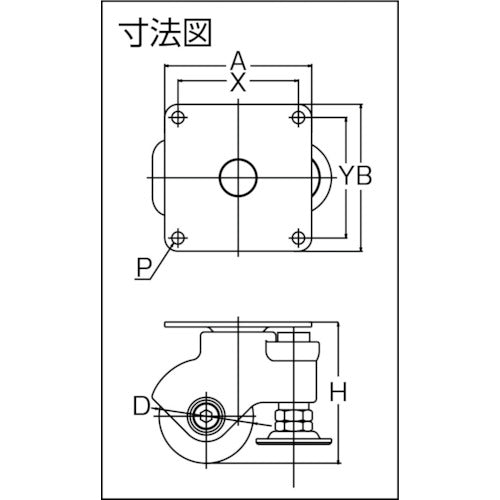

Catalog number: SPLG-75BN-AJ Features: ● Equipped with both caster and adjuster functions. ● Ideal for transporting lightweight machinery and equipment. ● Can be used as a caster when moving, and can be fixed as an adjuster foot when installing. Applications: ● Ideal for transporting and installing machinery and equipment. Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-wheeling ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 98 ● Mounting seat A (mm): 92 ● Mounting seat B (mm): 92 ● Mounting pitch X (mm): 75 ● Mounting pitch Y (mm): 75 ● Mounting hole diameter P (mm): 8.5 ● Allowable load (N): 600 ● Hole diameter (mm): 8.5 ● Free-wheeling ● Plate type ● Low-floor type Materials/Finish: ● Body: Nylon ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Black nylon
