YUEI Plate-type Swivel Stainless Steel Caster Nylon Wheel Diameter 100mm With Stopper J Type SUS-J-S Type Mounting Dimensions 74 x 74 (67 x 67) SUS-NJ-100S 1 pc

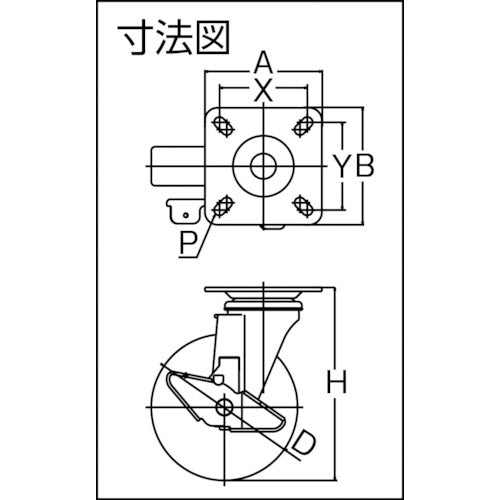

Catalog number: SUS-NJ-100S Features: ●Standard large casters with all-stainless steel fittings that are highly water-resistant and corrosion-resistant. ●Ideal for wet areas where food, medicines, etc. are handled, or where rust is unacceptable. ●Because the fittings are all-stainless steel, they are suitable for use in wet areas. Applications: ●All-stainless steel food carts, medicine carts, wagons. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 100 ● Allowable load (kgf): 102 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 67-74 ● Mounting pitch Y (mm): 67-74 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1000 ● Plate type ● Free-wheeling (with stopper) ● Axle bearing: None Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon
