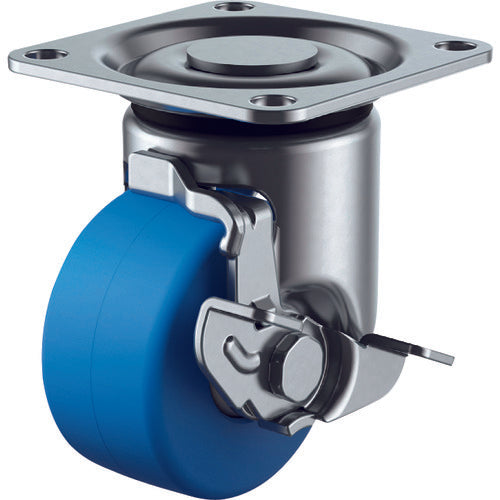

YUEI Plate-type Swivel Low-floor Caster Monomer Cast Nylon Wheel Diameter 50mm With Stopper H-type HG-S Model Mounting Dimensions 50x50 HG-50MCS 1 pc

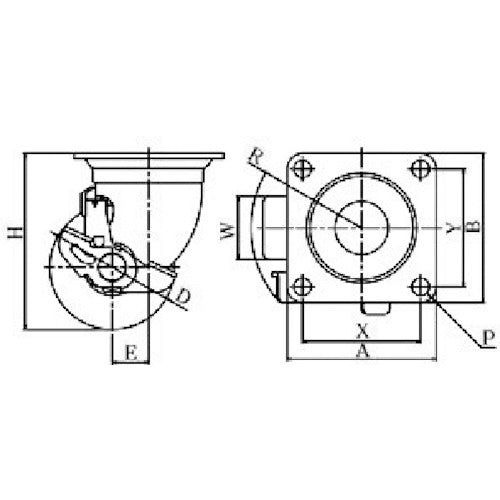

Catalogue number: HG-50MCS Features: ●A heavy-duty caster with a low mounting height. ●Uses MC nylon wheels with excellent heat, cold and abrasion resistance. Applications: ●For transporting machinery and equipment. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel (with stopper) ●Allowable load (daN): 160 ●Allowable load (kgf): 163 ●Wheel width (mm): 25 ●Mounting height H (mm): 68 ●Mounting seat A (mm): 64 ●Mounting seat B (mm): 64 ●Mounting pitch X (mm): 50 ●Mounting pitch Y (mm): 50 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 1600 ●Plate type ●Swivel (with stopper) Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Monomer cast nylon
