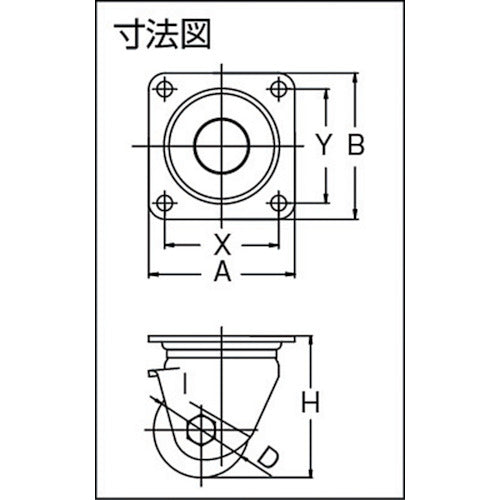

Catalog number: UHG-50MC Features: ●A small, low-floor, heavy-duty caster designed for heavy loads such as large machinery and equipment. ●Excellent heat resistance, cold resistance, and abrasion resistance, making it less likely to damage floor surfaces. Applications: ●Ideal for transporting and installing machinery and equipment. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel ●Allowable load (daN): 400 ●Allowable load (kgf): 408 ●Wheel width (mm): 38 ●Mounting height H (mm): 79 ●Mounting seat A (mm): 84 ●Mounting seat B (mm): 84 ●Mounting pitch X (mm): 64 ●Mounting pitch Y (mm): 64 ●Mounting hole diameter P (mm): 8.5 ●Allowable load (N): 4000 ●Swivel type ●Plate type ●Bearing included ●Low-floor type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: MC nylon
