Yokozuna sash replacement door roller, stainless steel roller, 14 type, round, ABS-0141, 1 piece

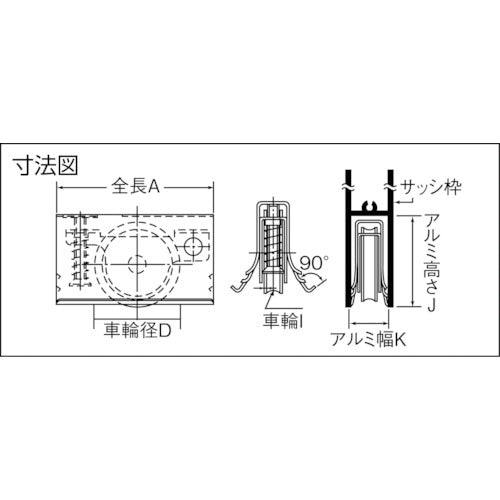

Catalogue number: ABS-0141 Features: ● One-touch installation. ● Height adjustment function. (Adjustment width 5 mm) Uses: ● For sash replacement. Specifications: ● Allowable load (daN): 9.8 ● Allowable load (kgf): 10 ● Wheel width (mm): 8 ● Mounting height H (mm): 30 ● Mounting seat A (mm): 60 ● Mounting seat B (mm): 14 ● Shape: Round ● Load capacity (kg) when using 2 pieces: 20 ● Wheel diameter D (mm): 28 ● Wheel I (mm): 3.5 ● Total length A (mm): 60 ● Aluminum width K (mm): 15-18 ● Aluminum height J (mm): 33 ● Stainless steel wheel with bearings Material/Finish: ● Outer frame: Stainless steel (SUS301) ● Inner frame: Stainless steel (SUS304) ● Core rod: Stainless steel (SUS304) ● Wheel: Stainless steel (SUS303)
