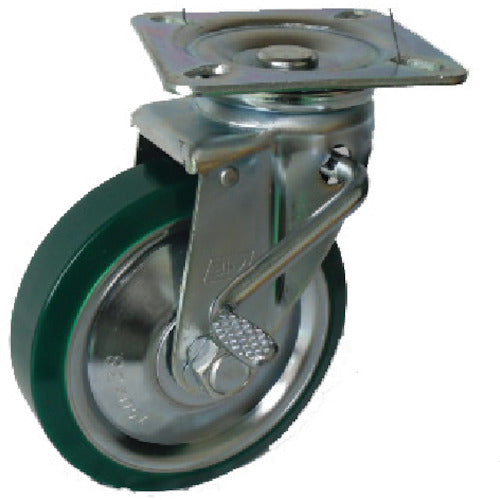

Yodono Pressed swivel fitting with brake, urethane wheel, 250φ UWJB250, 1 piece

Catalogue number: UWJB250 Features: ● A general-purpose pressed urethane caster. Applications: ● For transport carts and the undercarriages of machines. Specifications: ● Wheel diameter D (mm): 250 ● Type: Swivel ● Allowable load (kgf): 500 ● Wheel width (mm): 45 ● Mounting height H (mm): 305 ● Mounting seat A (mm): 160 ● Mounting seat B (mm): 160 ● Mounting pitch X (mm): 125 ● Mounting pitch Y (mm): 125 ● Mounting hole diameter P (mm): 14 ● Shaft diameter d (mm): 25 ● Bearing included ● Swivel ● Plate type ● With stopper Material/Finish: ● Metal fittings: Steel (surface treatment: unichrome plating finish) ● Wheels: Urethane rubber
