Yodono Heavy Duty MC Nylon Wheel Fixed Caster YRRKH200 1 pc

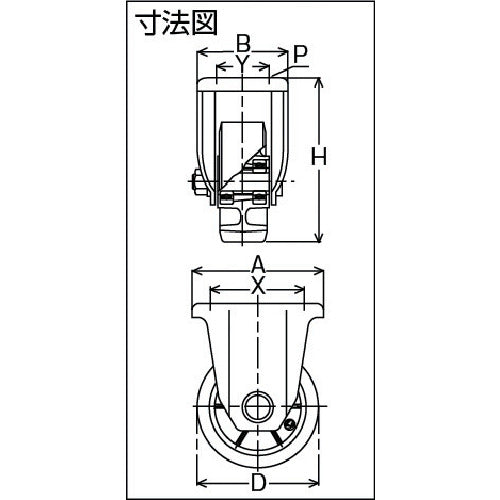

Catalog number: YRRKH200 Features: * Uses MC nylon wheels, reducing starting resistance. * Heat treatment is applied to the pivoting surface, which is the key to the swivel fitting, to counter localized wear caused by eccentricity. * Press-formed fittings for heavy load specifications. Used for a variety of purposes, inexpensive and economical. Uses: ●For general heavy object transportation Specifications: ●Wheel diameter D (mm): 200 ●Type: Fixed type ●Permissible load (daN): 646.8 ●Permissible load (kgf): 660 ●Wheel width (mm): 63 ●Mounting height H (mm): 250 ●Mounting seat A (mm): 151 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 112 ●Mounting pitch Y (mm): 63 ●Mounting hole diameter P (mm): 14 ●Permissible load (N): 6600 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Unichrome plating finish ●Wheels: MC nylon ●Wheels: Aluminum die-cast
