(株)東京パーツセンター

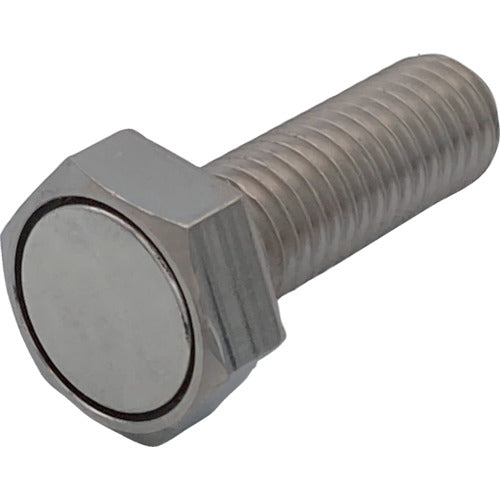

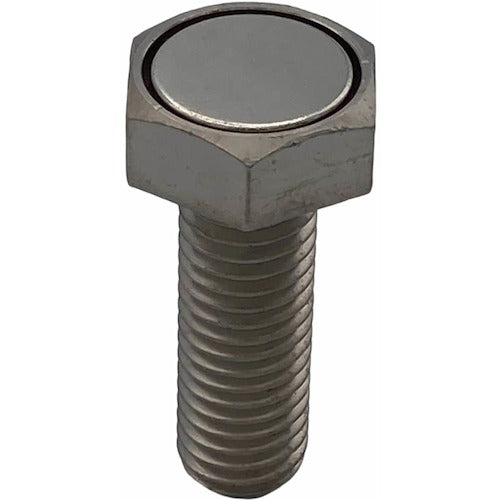

Lactem Magnetized Hexagonal Bolt M6-10 HBMM6-10 1 pc
Lactem Magnetized Hexagonal Bolt M6-10 HBMM6-10 1 pc
Regular price
¥1,003
Regular price
Sale price
¥1,003
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: HBMM6-10 Features: ●It can be tightly tightened with a wrench, etc., and can also be fixed with a commercially available hex nut. Uses: ●Use the screw holes to attach products, jigs, etc. Specifications: ●Adhesive force (N): 24 ●Magnet diameter (mm): 7 ●Magnet height (mm): 2 ●Mounting screw: Regular thread ●Screw diameter: M6 ●Hexagonal part diameter (mm): 10 ●Hexagonal part height (mm): 3.3 ●Screw length (mm): 10 Material/Finish: ●Main body: General structural rolled steel (SS400), Surface treatment: Electroless nickel plating ●Magnet: Neodymium magnet (Surface treatment: Nickel plating) Caution: ●Due to the strong magnetic force, do not place it near precision instruments, watches, medical equipment, magnetic cards, etc. ●Be careful not to break or chip it. ●Avoid using it at temperatures above 80°C as the magnetic force decreases significantly due to heat.
