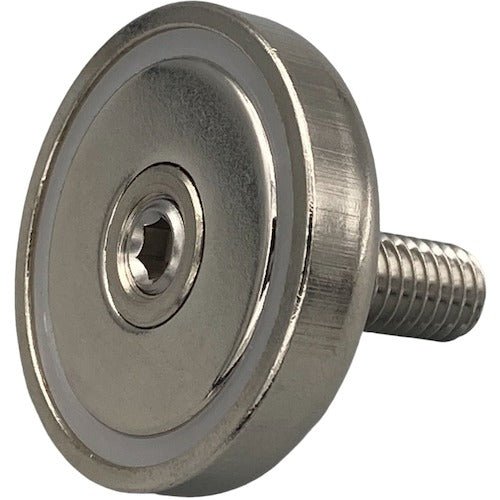

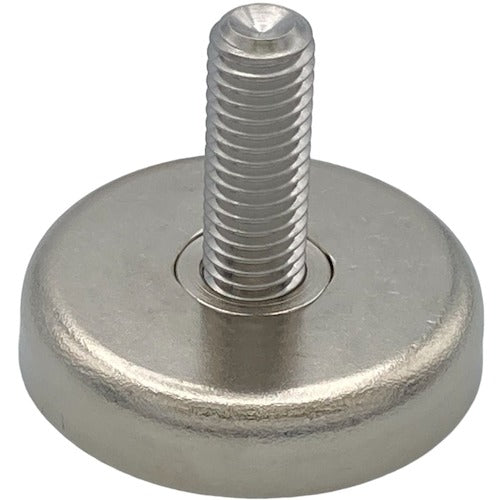

Lactem Magnet (Neodymium Cap Magnet) Round Male Thread with Non-Slip Rubber Φ25-20 NMYM25-20 1 pc

Catalog number: NMYM25-20 Features: ● Male thread type, can also be fixed using a hex nut. ● The magnet side has a hex hole, so it can be tightened with a hex wrench. ● Attaching the included non-slip rubber to the adsorption surface prevents scratches and provides a non-slip effect. Applications: ● Use the screw hole to adsorb products, jigs, etc. Specifications: Adhesive force (N): 196.1 Outer diameter (mm): 25 Height (mm): 20 Magnet diameter (mm): 18 Mounting screw: Regular thread Screw diameter: M5 Hexagonal part opposite side (mm): 2.5 Screw length (mm): 12 S (mm): 2.5 L (mm): 20 Material/Finish: Cap: Cold rolled steel plate (SPCC), Surface treatment: Nickel plating Magnet: Neodymium magnet (Surface treatment: Nickel plating) Screw: Stainless steel (SUS304) equivalent Anti-slip tape: CR rubber/C4305 (t0.5) Nitto 5000NS (t0.16) Set contents/Accessories: Anti-slip rubber φ18mm x 1 sheet Caution: Due to the strong magnetic force, do not place near precision instruments, watches, medical equipment, magnetic cards, etc. Be careful not to break or chip. Avoid using at temperatures above 80°C as the magnetic force decreases significantly due to heat. ●The anti-slip rubber may come off if you try to slide it too hard.
