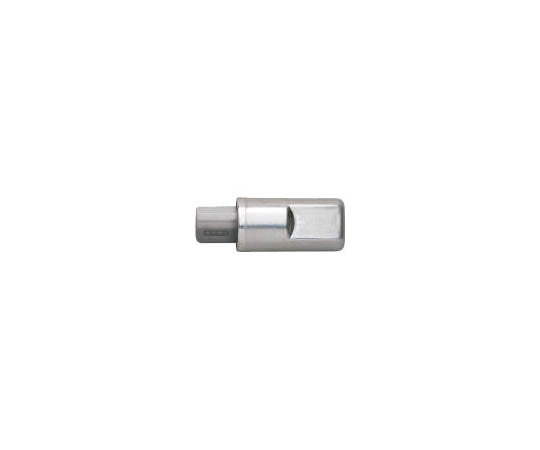

RAPCON Damper Hinge (170-017-539) UDH14BMS 1 piece

Our unique technology has made this compact size possible. Since it is a unit, it can be attached and detached individually. This enables ideal closing operation without any waste. The left and right can be distinguished by the color and shape of the shaft. The torque values ​​can be distinguished from the shaft identification color. It is effective in places where safety and texture due to movement are required, as well as to avoid noise and shock. Toilet seats and lids, furniture doors, maintenance covers, etc. *If the mounting side is a plate such as sheet metal, do not support the hinge on the cut surface of the plate. Quantity: 1 piece Total length (mm): 37 Width(mm):14 Torque: 0.8 to 1.5 N・m (8.2 to 15.3 kgf・cm) Specifications: Right-hand use (damper works when shaft is turned clockwise) Braking direction: Right rotation Identification color: Blue Opening and closing test: 70,000 times (our standard) Material/Finish: Body: Stainless steel (base material), etc. Code: 821-8268
