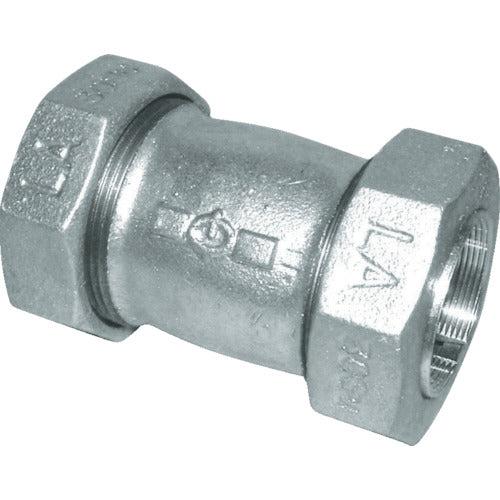

Riken Pipe Fitting LA Coupling HI-LA Type Socket with Lock Ring Nominal Size (A) 40 G-HI-LA-S-40A 1 Piece

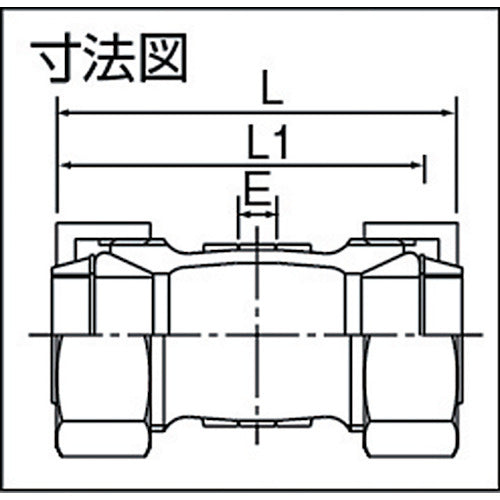

Catalog number: G-HI-LA-S-40A Features: ● Certified by the Japan Water Works Association. Applications: ● Piping for water, gas, hot water (excluding coated products), oil, etc. Specifications: ● Nominal diameter (mm): 48.60 ● Type: Socket ● Number of bolts ● Fastening bolt (L) ● Nominal diameter A: 40 ● L (mm): 101 ● E (mm): 15 ● Nominal diameter B: 1 1/2 ● L1 (mm): 75 ● Rubber packing, washer included ● Lock ring included (prevents dislodging) ● Certified by the Japan Water Works Association Material/Finish: ● Malleable cast iron (FCMB)
