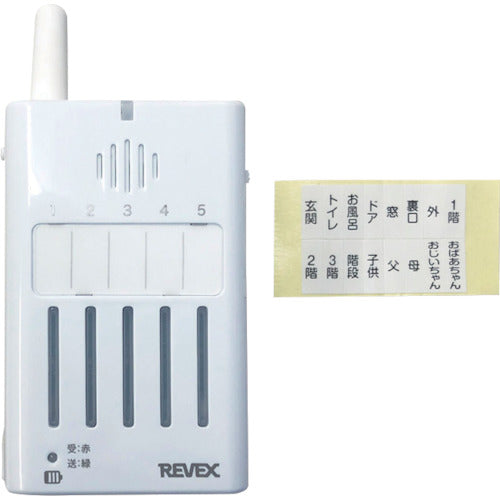

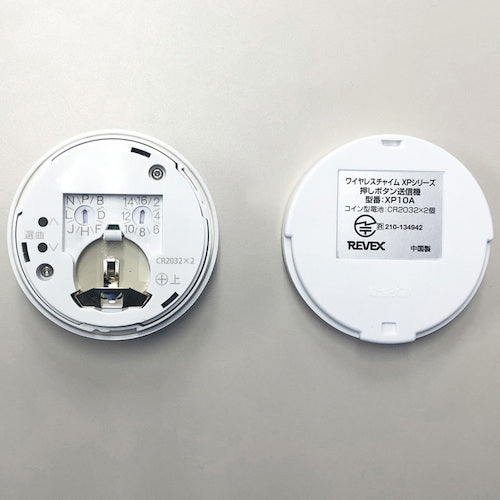

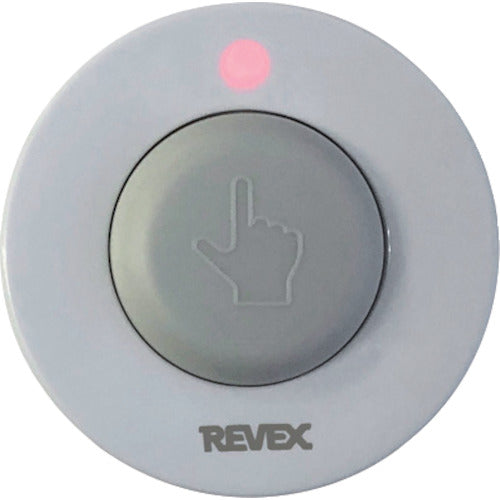

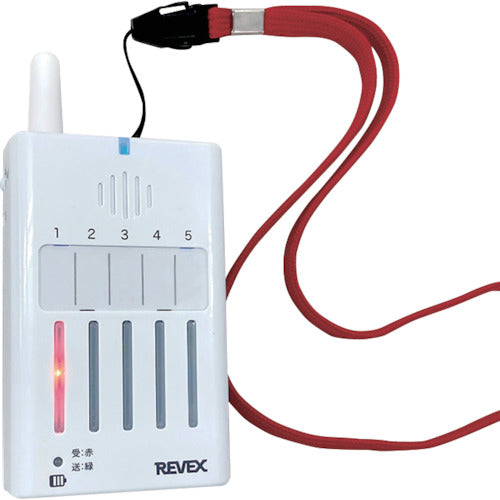

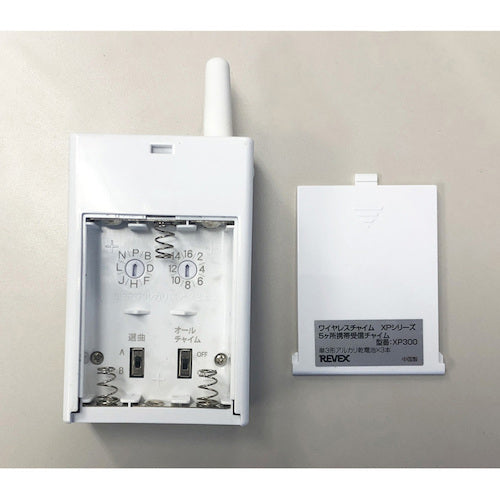

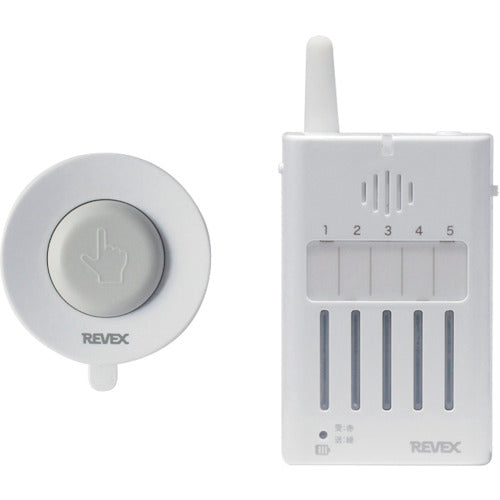

Catalog number: XP310A Features: ●When you press the push button, the receiver in a remote location will notify you with sound, light, and vibration. ●You can check the locations of up to 5 transmitters. ●The radio wave reach is up to 150m in line of sight outdoors and up to 75m in line of sight indoors. ●You can add any number of transmitters and receivers. ●With 256 different ID codes, there is almost no risk of interference. ●You can choose from 64 types of chime sounds, voices, melodies, sirens, etc. (selectable for each transmitter). ●The transmitter is rainproof, so it can be used outdoors or in the bathroom. ●It is battery-powered, so it can be installed anywhere. ●The receiver is portable, so you can receive signals anywhere in the house. Specifications: ● Chime type: Portable receiver push button set ● Protection rating: IP67 equivalent (transmitter) ● Product name: 5-place mobile call chime set ● Volume (dB): 45-90 ● Receiver width x depth x height (mm): 57 x 27 x 110 ● Transmitter width x depth x height (mm): φ60 x 27 x 70 ● Transmitting and receiving frequency: 315MHz band ● Number of ID codes: 256 types ● Call tone: 64 types ● Installation location: Transmitter (outdoor/indoor)/Receiver (indoor) ● Power supply (V): Transmitter coin-type lithium battery 2032 x 2 (included for testing)/Power supply: 3 AA alkaline batteries (sold separately) ● Battery life: Transmitter approx. 1.5 years (10 times a day: at 20°C)/Receiver 3 months (10 times/day operation: at 20°C) ● Body size: Transmitter Approx. W60 x H70 x D27mm (including mounting plate) * Body size (mm): Receiver approx. W57 x H110 x D27 * Body weight: Transmitter approx. 38g / Receiver approx. 60g (excluding batteries) Material / Finish: * ABS resin Set contents / Accessories: * 1 receiver, 1 transmitter * Double-sided tape for transmitter * Screws * Ribs * Label for receiver * Mini screwdriver for switching ID code
