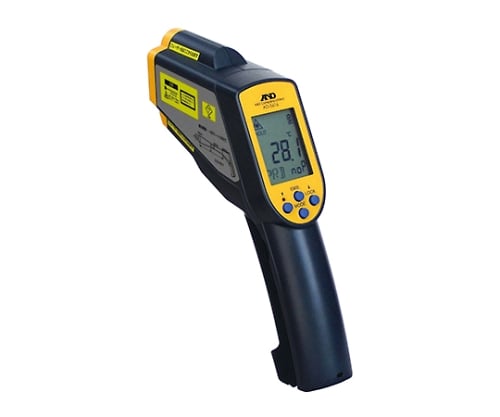

Infrared thermometer with laser marker (high temperature model) AD-5616 1 piece
Infrared thermometer with laser marker (high temperature model) AD-5616 1 piece
Regular price
¥39,050
Regular price
Sale price
¥39,050
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
[Applications]
Steelmaking, casting, forging, incinerator temperature measurement, resin extrusion molding, mold temperature measurement, molten metal, hardening, annealing, tempering temperature control, microwave, laser heating temperature control
【Features】
Can measure up to 1500℃
PS/C mark certified product
With laser marker
Backlight and laser marker
Emissivity setting can be changed
With upper/lower temperature limit alarm function
Maximum, minimum, average temperature, temperature difference display possible, continuous measurement function
Optional K-type thermocouple temperature sensor can be used (AD-1214/AD-1215/AD-1217/AD-1218/AD-1219)
Auto power off function Measurement range: -60℃ to +1500℃
Measurement range Thermocouple thermometer: -60℃ to +1400℃ (display range)
Measurement accuracy: Radiation thermometer: ±2% or ±2°C, whichever is greater (-33°C to 1500°C)
Measurement accuracy Thermocouple thermometer: ±1% or ±1℃, whichever is greater (thermocouple thermometer body accuracy)
Minimum display: 0.1℃ (-60℃~+999.9℃), others are 1℃
Emissivity setting range: 0.10 to 1.00, can be set (changed) in 0.01 increments
Distance (D): Measurement range (S): 50:1
Laser marker: Class 2 (JIS C 6802) laser wavelength 635-660nm, output power 1mW or less
Power supply: 2 AAA batteries
Accessories: Instruction manual, battery (for monitor), carrying case
