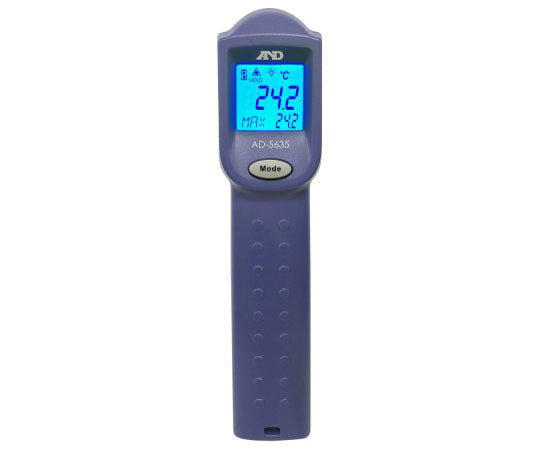

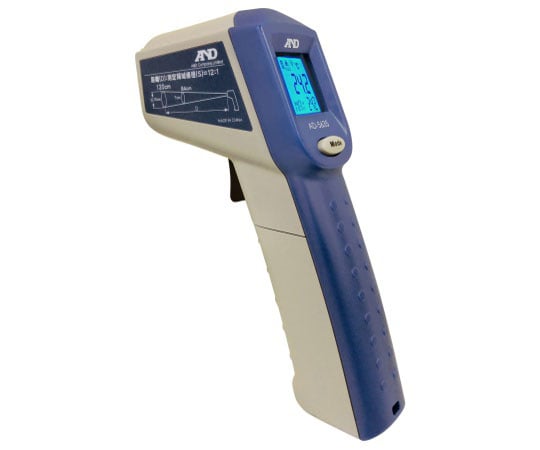

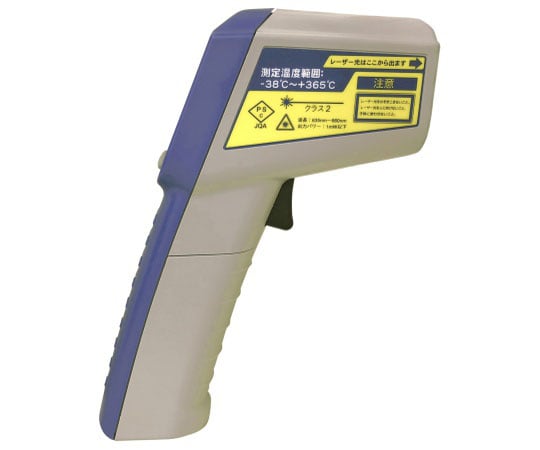

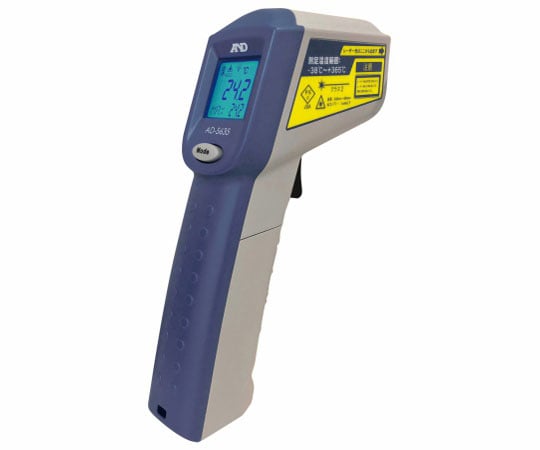

Infrared thermometer with laser marker AD-5635 1 piece
Infrared thermometer with laser marker AD-5635 1 piece
Regular price
¥5,280
Regular price
Sale price
¥5,280
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
[Applications]
For heat generation and temperature control of machinery, piping equipment, and air conditioning equipment; for temperature measurement and control in paint drying processes; for temperature control of asphalt pavement and concrete curing; for temperature control of plastic molding and resin products; for heat generation and temperature control of building walls, floors, and ceilings; for controlling the fermentation and maturation temperatures of foods such as sake, soy sauce, miso, and bread; for temperature control of foods (meat, seafood) and during transportation and storage
【Features】
PS/C mark (JQA) certified product
Simultaneous display of maximum temperature during measurement
Backlight and laser marker
Auto power off function (automatically turns off in about 15 seconds)
Measurement range is -38 to +365°C (AD5635/AD5619)
Measurement range is -60 to +500°C (AD5611A/AD5614) Product size (mm): Length 162 x Width 40 x Height 0.17
Product weight(kg): 0.17
Measurement range: -38 to +365°C
Minimum display: 0.1℃
Response time: approx. 1 second (90%)
Response wavelength: 5 to 14 μm
Emissivity setting: Select from 0.95/0.70/0.30 (factory default 0.95)
Measurement distance (D): Measurement range (S) = 12:1

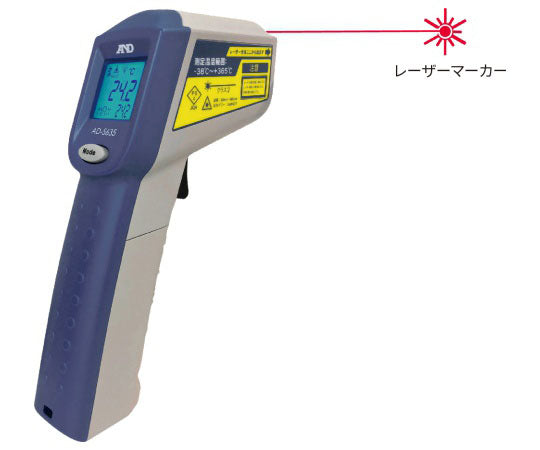

Laser marker
Class 2 (JIS C 6802)
Laser wavelength: 635-660nm
Output power: Less than 1mW (marker can be turned off)
Batteries: 2 AAA batteries
Battery life: 14+ hours (alkaline batteries, continuous use)
Blister Pack
