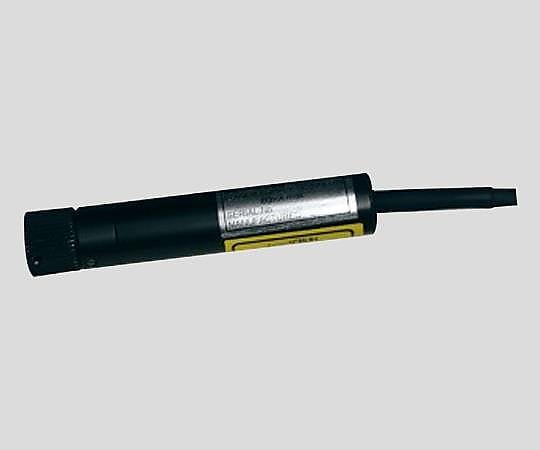

Laser light source (red) Point connector (with AC adapter) KMP-635-3-A 1 piece
Laser light source (red) Point connector (with AC adapter) KMP-635-3-A 1 piece
Regular price
¥30,250
Regular price
Sale price
¥30,250
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is a visible light semiconductor laser light source with built-in driver circuit for embedding in equipment.
APC circuit provides stable output. Wavelength: 635nm
Output power: Max 1.8mW
Output adjustment: Approx. 20 to 100%
Focus adjustable
Irradiation size: Point
Class: 3R
Modulation: Maximum approx. 1kHz (TTL)
Size: φ12 x approx. 60mm
Irradiation shape: Point
Cord connection: With connector (AC adapter included)
red
*We recommend using a holder to dissipate heat.
