Weidmuller Snap-in Connector MPS Series (with center lock) 5.00/05/180 2741700000 1 piece

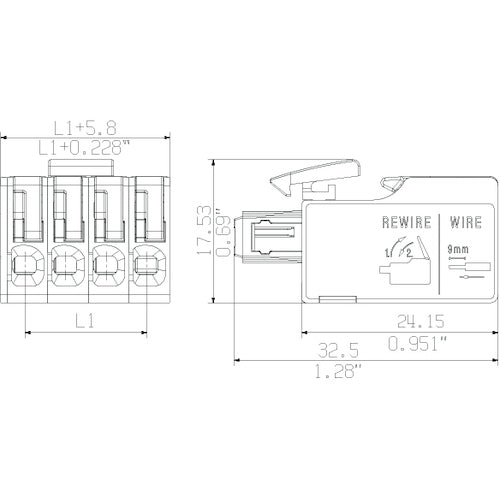

Catalog number: 2741700000 Features: ●Next-generation connection system snap-in clamp that can connect twisted wires as they are. ●Wire-saving - Save time and costs. The clamp is delivered in an open state, so you can easily connect the wires by simply inserting the stripped twisted wires. ●No crimp terminals or tools are required. ●Safety indicator. The click sound and the indicator pop-out mechanism when the wiring is complete allow you to visually confirm that the connection is complete. Applications: ●For device boards in various industries, such as various I/O equipment, inverters, and controllers. Specifications: ●Pitch 5.00 mm, 5 poles, L1 = 20.0 mm ●IEC: 400 V / 26.8 A / 0.5 to 4.0 mm2 ●UL: 300 V / 18.5 A / AWG 20 to AWG 12 (twisted wire) ●Wire coating stripping length: 9 mm (8 mm to 10 mm) ●Insulation material: PBT GF ●Operating temperature range: -50 ° C to 100 ° C ●Simple tray packaging
