Weidmuller snap-in connector MPS series 5.00/05/180 2741590000 1 piece

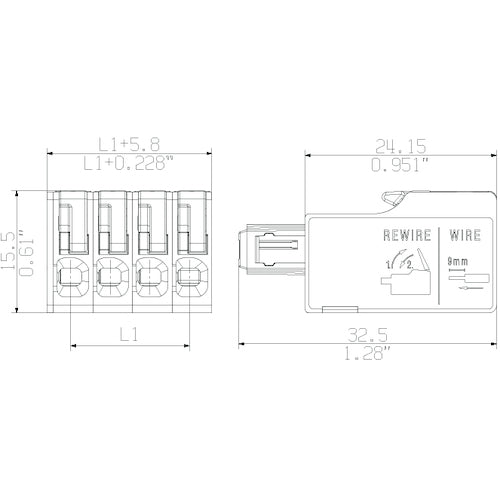

Catalog number: 2741590000 Features: ●Next-generation connection system snap-in clamp that can connect twisted wires as is. ●Less wiring - Saves time and costs. The clamp is delivered in an open state, so you can easily connect by simply inserting the stripped twisted wire. ●No crimp terminals or tools are required. ●Safety indicator. When the connection is complete, a clicking sound and an indicator pop-out mechanism allow you to visually confirm that the connection is complete. Applications: ●For device boards in various industries, such as various I/O equipment, inverters, and controllers. Specifications: ● Number of poles: 5 ● Length (mm): 34 ● Width (mm): 25.8 ● Height (mm): 15.5 ● Insulation outer diameter (mm): 4 ● Pitch 5.00mm 5 poles, L1 = 20.0mm ● IEC: 400V / 26.8A / 0.5-4.0 [MM2] ● UL: 300V / 18.5A / AWG20-AWG12 (stranded wire) ● Wire coating stripping length: 9mm (8mm-10mm) ● Insulation material: PBT GF ● Operating temperature range: -50℃ to 100℃ ● Simple tray packaging
