Weidmuller crimp terminal H50.0/22 ​​ferrule 9025880000 100 pieces

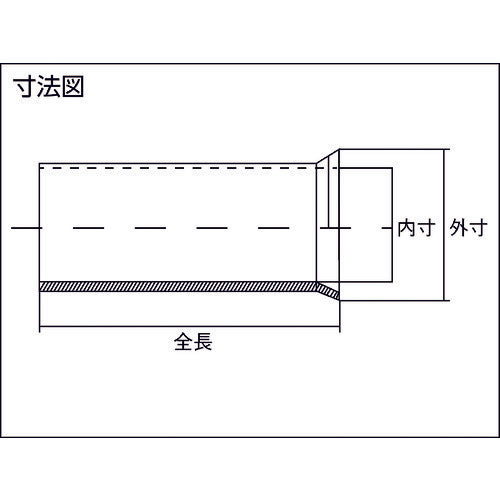

Catalog number: 9025880000 Features: ● The sleeve (ferrule) prevents the wires from coming apart, contributing to improved quality. Applications: ● For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ● Wire clamping range Stranded wire (mm2): 50 ● Wire clamping range AWG: 1 ● External dimension (mm): 13.0 ● Total length (mm): 25.0 ● Internal dimension (mm): 10.3 ● Compatible wire: 50mm2/AWG 1 ● Crimp terminal based on DIN 462228 part 41 ● Total length/stripping length (mm): 22 Material/Finish: ● Copper (tin-plated)
