Weidmuller Insulated Covered Crimp Terminal H1.0/18 GE SV Ferrule 9028340000 100 Pieces

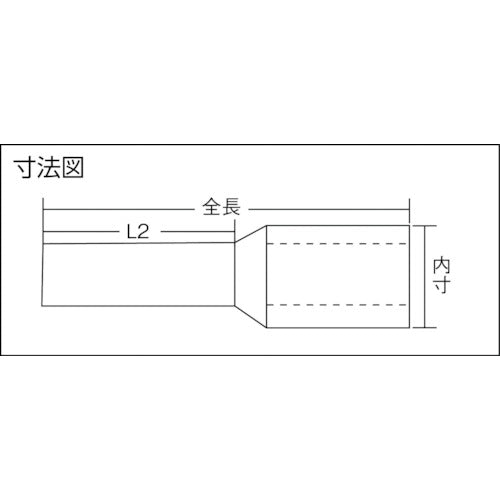

Catalog number: 9028340000 Features: ● Sleeves (ferrules) prevent wires from coming apart, contributing to improved quality. ● Available in a wide variety of colors to color-code wire sizes. Applications: ● For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ● Wire compatibility range Stranded wire [MM2]: 1 ● Wire clamping range Stranded wire (MM2): 1 ● Wire clamping range AWG: 17 ● Wire compatibility range AWG: 17 ● Color: Yellow ● Total length (mm): 18.0 ● Inner dimensions (mm): 3 ● L2 (mm): 12.0 ● Crimp terminal based on DIN 462228 part 4 ● Conductor length (mm): 12 ● Stripping length (mm): 15 ● Insulation width (mm): 3 ● Insulation color: Yellow Material/Finish: ● Copper (tin-plated) ● Polypropylene (PP)
