Weidmuller 2-piece crimp terminal with insulating cover H0.5/18 ZH OR ferrule 9037220000 500 pieces

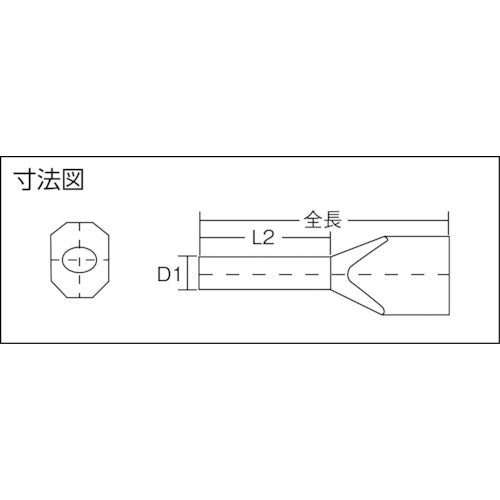

Catalog number: 9037220000 Features: * Sleeves (ferrules) prevent wires from coming apart, contributing to improved quality. * Available in a wide range of colors to allow color-coding by wire size. * For connecting two wires. Applications: * For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ●Wire compatibility range Stranded wire [MM2]: 0.5 ●Wire clamping range Stranded wire (MM2): 0.5 ●Wire clamping range AWG: 20 ●Wire compatibility range AWG: 20 ●Color: Orange ●Total length (mm): 18.0 ●L2 (mm): 12.0 ●D1 (mm): 1.4 ●Compatible wire: 0.5mm2/AWG 20 ●Crimp terminal based on DIN 462228 part 4 ●Conductor length (mm): 12 ●Stripping length (mm): 1.4 ●Insulation width (mm): 0.15 ●Insulation color: Orange Material/Finish: ●Copper (tin plated) ●Polypropylene (PP)
