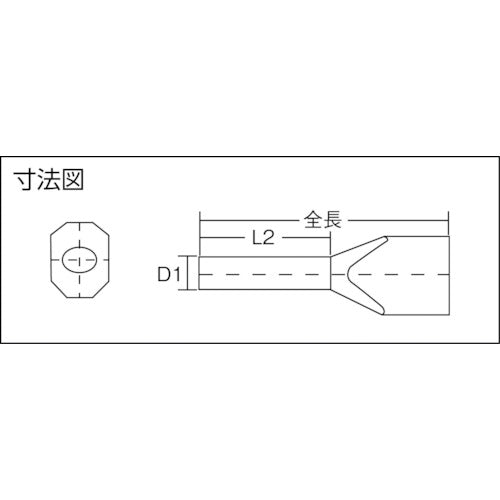

Catalog number: 9037370000 Features: * Sleeves (ferrules) prevent wires from coming apart, contributing to improved quality. * Available in a wide range of colors to allow color-coding by wire size. * For connecting two wires. Applications: * For spring connections, push-in terminal blocks, and other European-style terminal blocks. Specifications: ●Wire compatibility range Stranded wire [MM2]: 16 ●Wire clamping range Stranded wire (MM2): 16 ●Wire clamping range AWG: 6 ●Wire compatibility range AWG: 6 ●Color: Green ●Total length (mm): 38.0 ●L2 (mm): 25.0 ●D1 (mm): 8.3 ●Compatible wire: 16mm2/AWG 6 ●Crimp terminal based on DIN 462228 part 4 ●Conductor length (mm): 25 ●Stripping length (mm): 8.3 ●Insulation width (mm): 0.3 ●Insulation color: Green Material/Finish: ●Copper (tin plated) ●Polypropylene (PP)
