ELPA

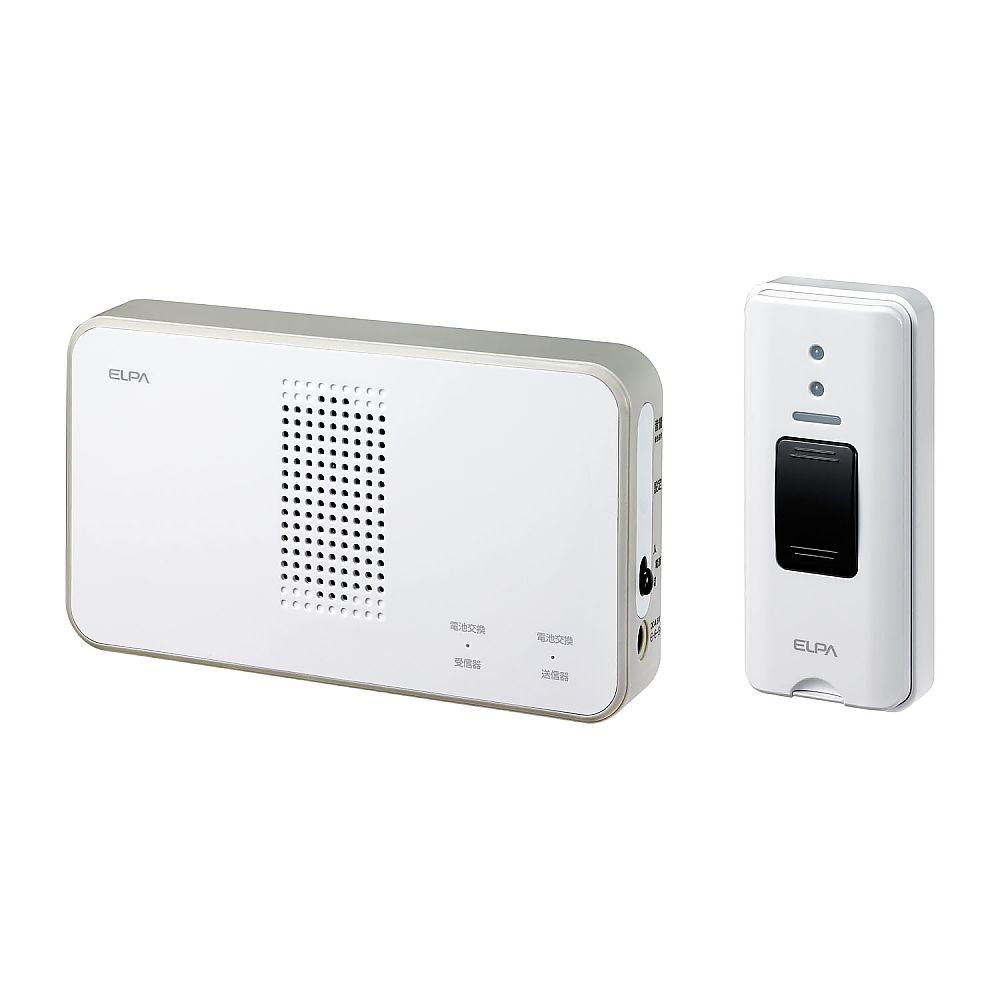

Wireless Chime Push Button Set EWS-S5030 1 piece
Wireless Chime Push Button Set EWS-S5030 1 piece
Regular price
¥5,038
Regular price
Sale price
¥5,038
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

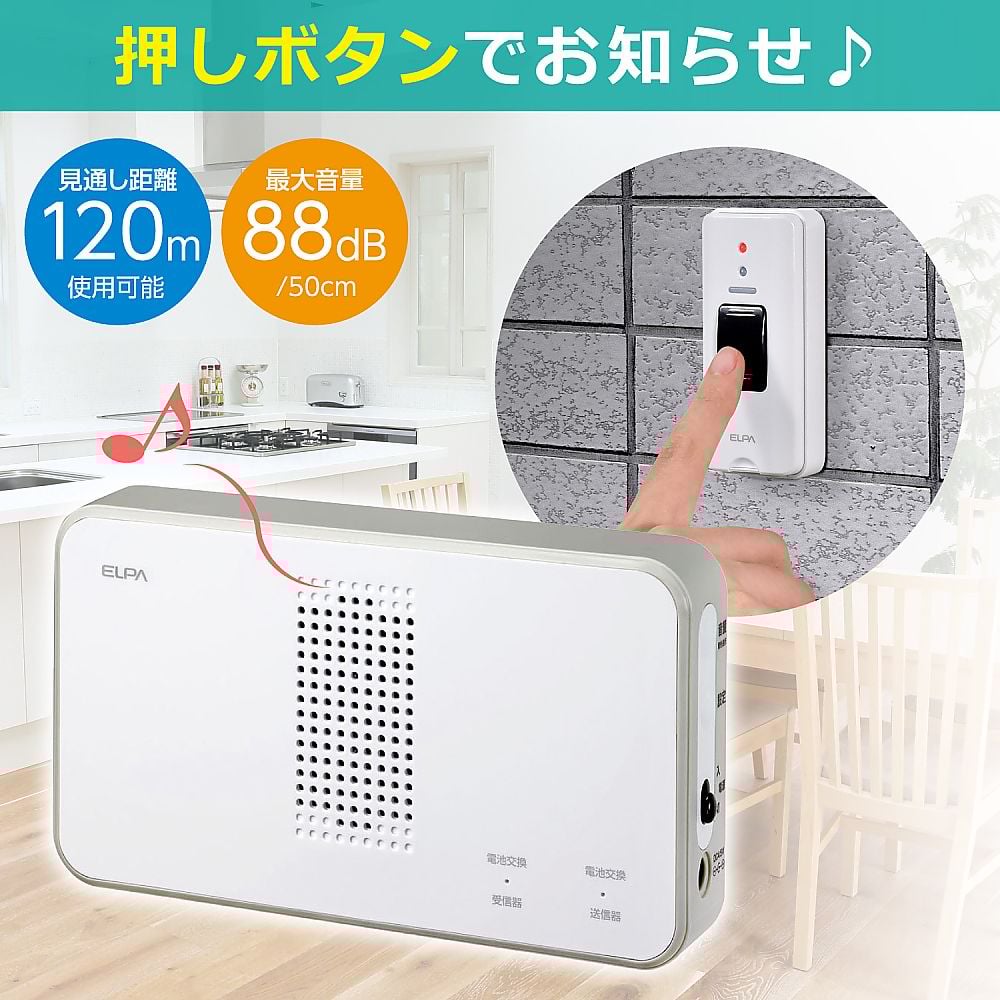

Easy to install as it is a wireless type that does not require wiring! You can add transmitters and receivers according to your needs. (Up to eight transmitters can be registered and used with one receiver.)
Any number of receivers can be added to one transmitter.

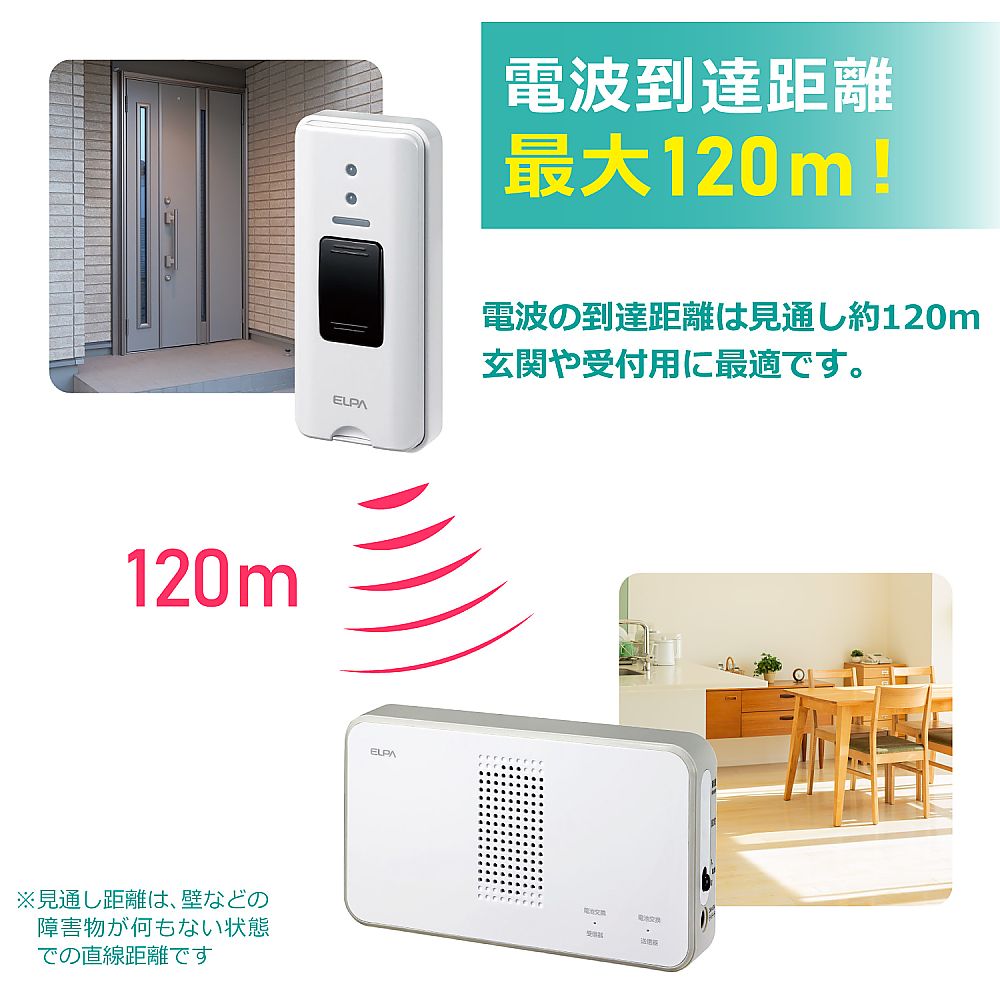

The radio wave has a line-of-sight reach of approximately 120m, making it ideal for paging and alerting in homes, stores, and offices.
There are approximately 250,000 different ID codes (identification codes), so there is no need to worry about interference.
A lamp will notify you when it is time to replace the batteries in the receiver and transmitter.
20 types of alarm sounds can be set to your liking. Since a different sound can be set for each transmitter, it is possible to distinguish between transmitters by sound.

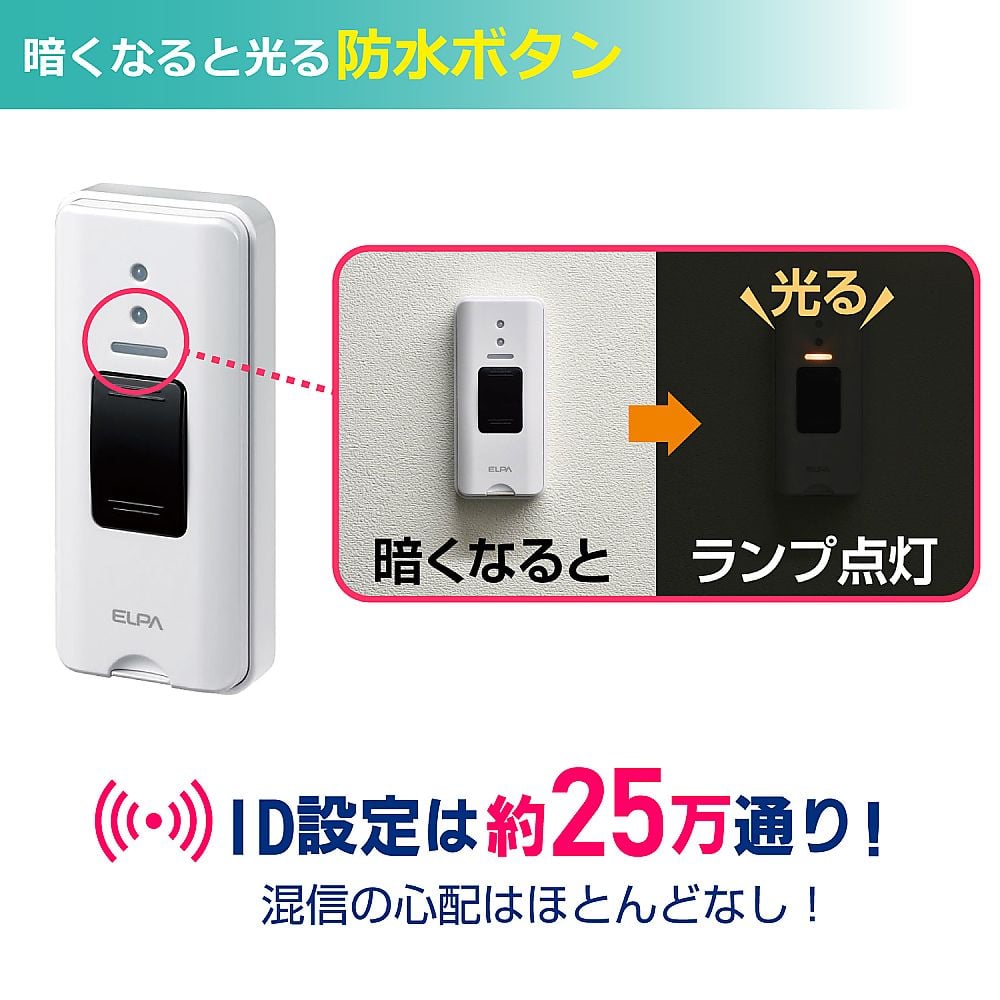

A weatherproof push button with an LED that lights up when it gets dark, making its location easy to find.
*Please avoid installing the product in a location where it will be directly exposed to large amounts of water (such as torrential rain or typhoon rain).

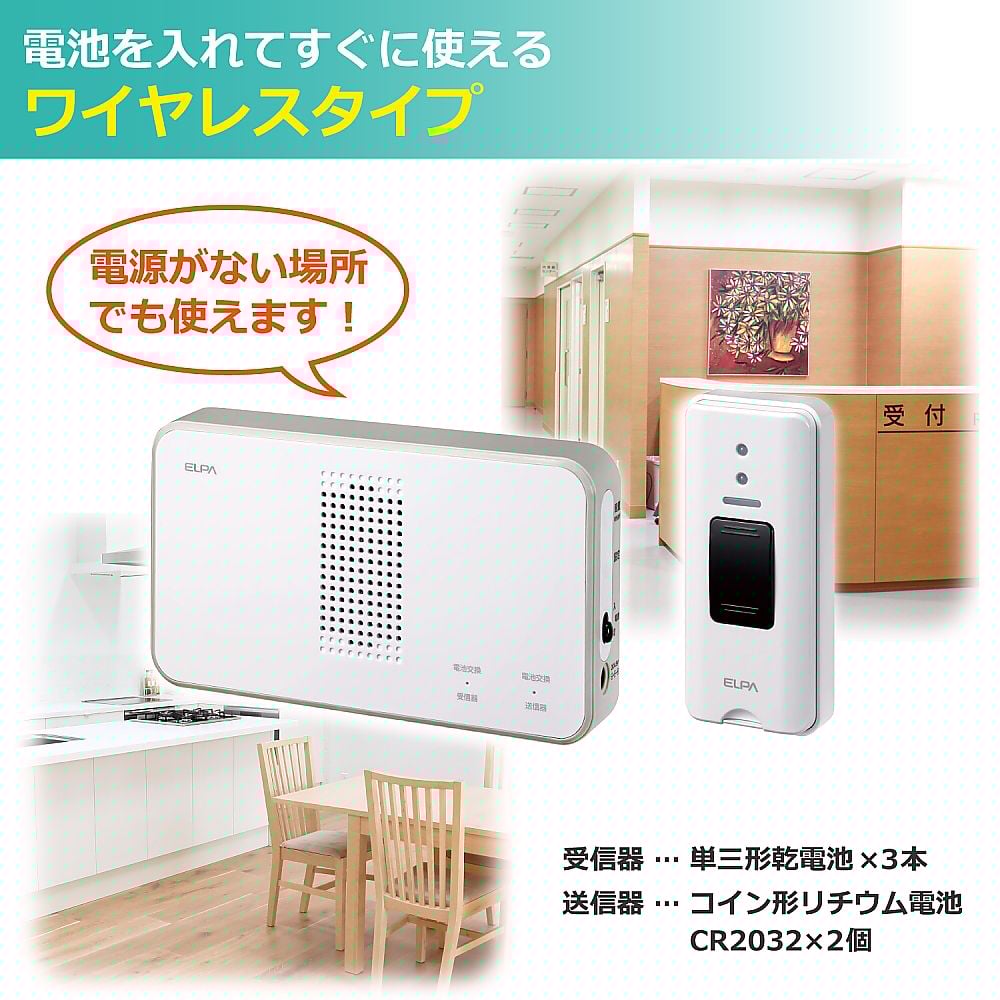

Receiver: 3 AA batteries (sold separately) or DC 4.5V center positive
Compatible plug: Outer diameter Φ5.5mm, inner diameter Φ2.1mm (when using an AC adapter sold separately)
Push button transmitter: 2 x CR2032 coin type lithium batteries (sold separately)
Battery life
Receiver: Approximately 1 year (10 times a day, volume 4, ping pong high tone) *When using alkaline batteries
Push button transmitter: Approx. 2 years (used 10 times a day)
*Battery life may be shortened depending on battery performance and usage conditions.
Volume: Approx. 88dB/50cm
Radio wave reach: Line of sight approx. 120m
Frequency: 313.625MHz (specific low-power device)
ID code: Approximately 250,000 combinations
Operating temperature range: 0℃ to 40℃

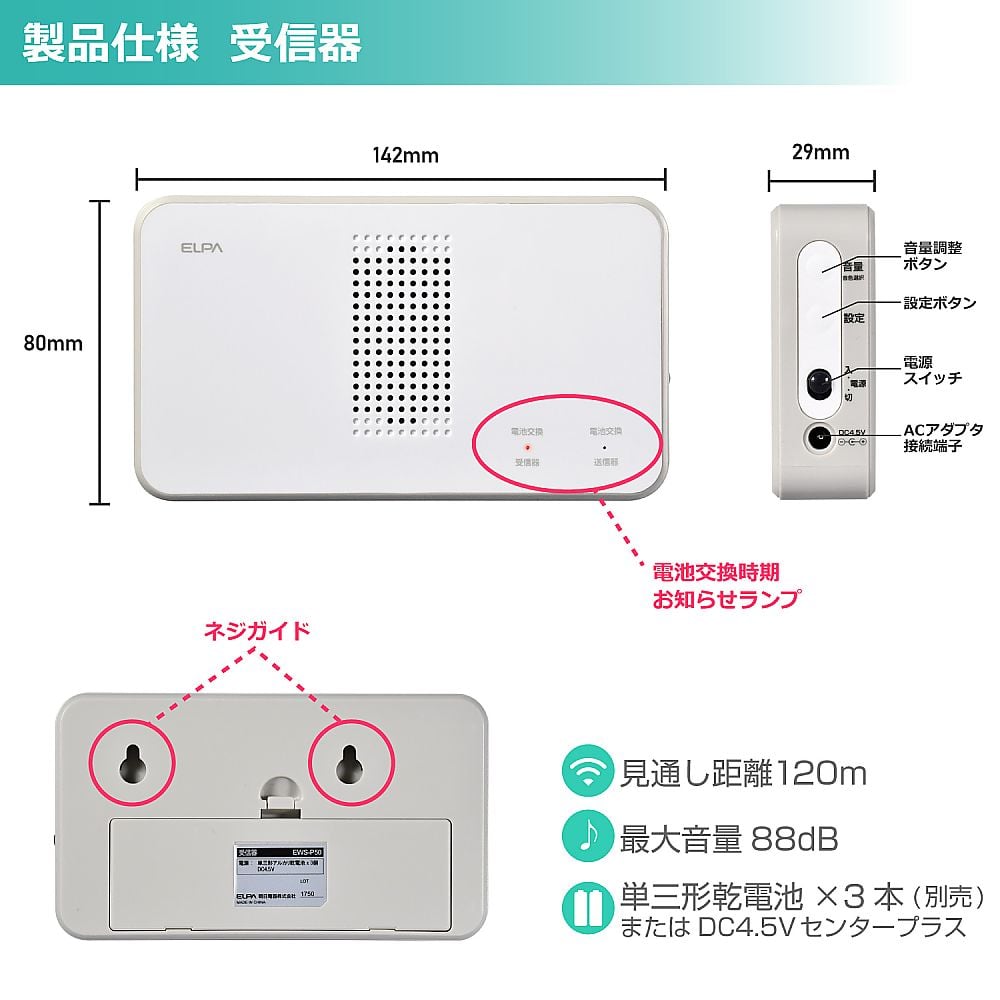

External dimensions (approx.)
Receiver: Width 142 x Height 80 x Depth 29 (mm) (maximum)
Push button transmitter: Width 40 x Height 91 x Depth 19 (mm) (maximum value)
mass
Receiver: Approx. 138g (excluding batteries)
Push button transmitter: Approx. 38g (excluding batteries)
Waterproof specifications: IPX4 splash-proof (push button transmitter)
Accessories: 4 mounting screws (Φ3 x 20mm), 1 double-sided tape
View full details
