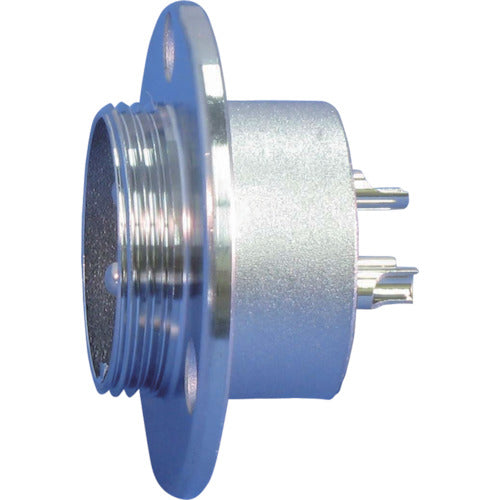

Shichisei Metal Connector NCS-40 Series 10-Pole R NCS-4010-R 1 pc

Catalog number: NCS-4010-R Features: ●Basic metal connector that can be used for various circuits. ●Robust and simple structure provides mechanical and electrical stability. Applications: ●Screw-lock connector. Specifications: ●Wire conductor cross-sectional area (mm2): No. 1, 9, 10-2, others - 1.25 ●Connector shape: R receptacle, male ●Number of contacts: 10 ●Dielectric strength (V): 1800 ●Rating: 3-10A 7-5A 250V ●Limiting operating voltage (V): 300 Material/Finish: ●Shell: Zinc alloy, chrome plated ●Insulator: Synthetic resin ●Contact: Copper alloy, silver plated
