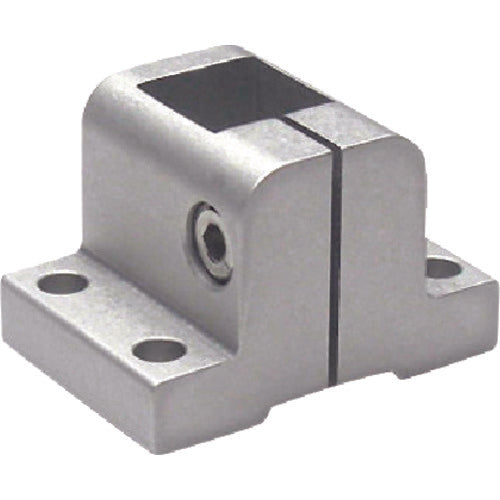

Miyoshi Machinery Pijon SQ10-601 SQ10-601 1 piece

Catalog number: SQ10-601 Features: ●This is a square hole type product that is more resistant to vibration and can be fixed firmly. Specifications: ●Type: Vertical square type ●Width (mm): 24 ●Height (mm): 24 ●Length (mm): 38 ●Screw dimensions: M4 ●A (mm): □10 ●B (mm): 14.5 ●C (mm): 24 ●H (mm): 24.5 ●K (mm): 7 ●F (mm): 20 ●W (mm): 38 ●G (mm): 30 ●J (mm): 14 ●4-φP (mm): 4.5 ●Tightening screw: M4 ●Fixes the end of the support Material/Finish: ●Aluminum alloy
