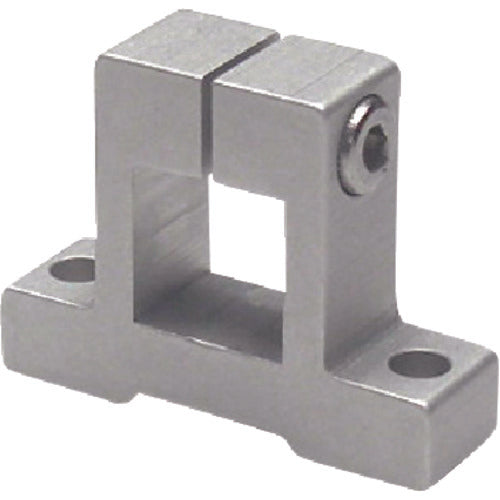

Miyoshi Machinery Pijon SQ19-600 SQ19-600 1 piece

Catalog number: SQ19-600 Features: ●This is a square hole type product that is more resistant to vibration and can be fixed firmly. Specifications: ●Type: Horizontal square type ●Width (mm): 20 ●Height (mm): 40 ●Length (mm): 52 ●Screw dimensions: M5 ●A (mm): □19 ●B (mm): 19 ●H (mm): 21.5 ●C (mm): 20 ●K (mm): 10.5 ●F (mm): 30 ●W (mm): 52 ●G (mm): 42 ●2-φP (mm): 5.5 ●Tightening screw: M5 ●Square shaft for cantilever or parallel frame structure Material/Finish: ●Aluminum alloy
