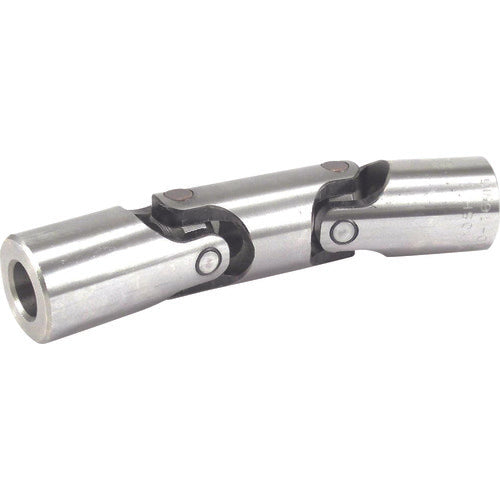

Miyoshi Machinery Universal Joint BD-10 BD-10 1 piece

Catalogue number: BD-10 Features: ●Product that can transmit at an angle. Applications: ●For popular high torque applications Specifications: ●Inner diameter (mm): 10 ●Outer diameter (mm): 20 ●Length (mm): 102 ●Maximum allowable torque (N・m): 26 ●Total length (mm): 102 ●Type: Powerful BD type ●Effective shaft insertion dimension (mm): 23 ●Maximum rotation speed (min-1): 950 ●Maximum transmission capacity (N・m): 26 ●For popular high torque applications Material/Finish: ●S45C and others Notes: ●*Please request a separate quote if additional processing is required.
