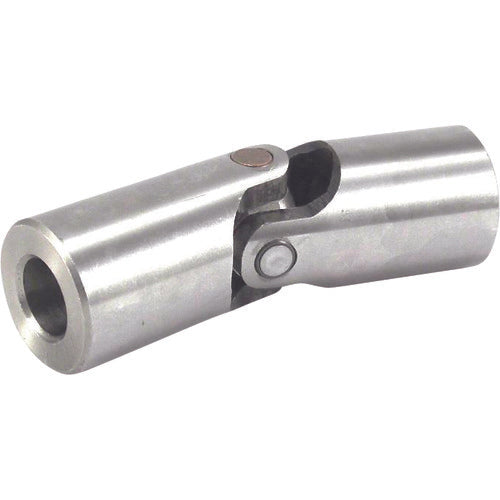

MIYOSHI KIKAI Universal Joint B-12 B-12 1 piece

Catalogue number: B-12 Features: ●Product that can transmit torque at an angle. Applications: ●For popular high torque applications Specifications: ●Inner diameter (mm): 12 ●Maximum rotation speed (min-1): 1100 ●Outer diameter (mm): 24 ●Effective shaft insertion dimension (mm): 29 ●Maximum transmission capacity (N・m): 55 ●Total length (mm): 84 ●Type: Powerful type B ●For popular high torque applications Material/Finish: ●S45C and others Notes: ●*Please request a separate quote if additional processing is required.
