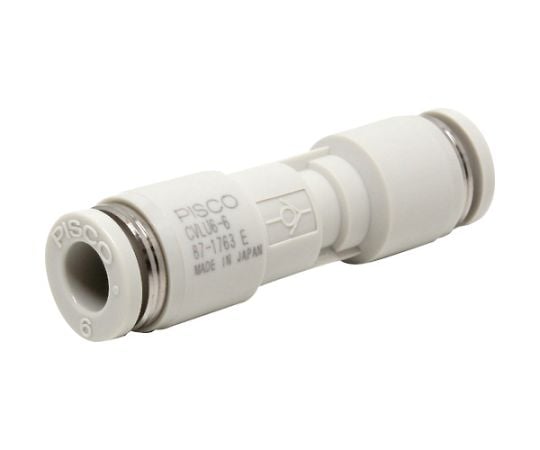

Low operating pressure check valve Union straight CVLU6-6 1 piece

Since only the air input from one side flows, it is possible to maintain pressure on the output side. It can also be used for vacuum maintenance and low pressure piping. This is a product that is suitable for low-concentration ozone. Effective cross-sectional area (mm2): 4.3 Applicable tube outer diameter D (mm): 6 x 6 Total length (mm): 45 Operating pressure (MPa): -0.1 to 1 Operating temperature range (℃): 0 to 60 (no freezing) Fluid used: Air Operating temperature range: 0 to 60°C (no freezing) Operating pressure: 1.0MPa Vacuum pressure used: -100kPa Minimum operating pressure difference: 5kPa (at 25℃) Minimum check pressure difference: 0.01MPa Working pressure: 5kPa Material/Finish: Body/Polybutylene terephthalate (PBT), Seal rubber/HNBR, FKM Country of Origin: Japan Code number: 442-6363
