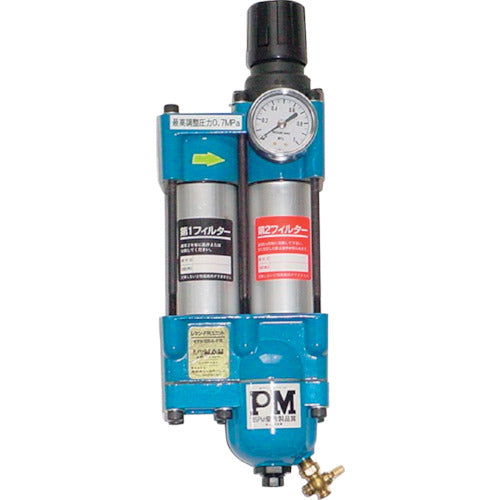

Maeda Shell Leman FR unit M-105A-FR-5 1 unit

Catalogue number: M-105A-FR-5 Features: ● Zero water or oil droplets. ● Completely removes solid particles of 5 μm or larger. ● Equipped with a regulator to adjust air pressure. ● Removes moisture and drainage from compressor air to produce dry air. Specifications: ● Filtration accuracy (μm): 5 ● Operating pressure (MPa): 0.3-0.97 ● Connection port size: Rc3/8 ● Overall length (mm): 328 ● Overall width (mm): 105 ● Drain discharge method: Automatic ● Fluid used: Air, nitrogen ● Fluid temperature (℃): 5-60 ● Maximum flow rate (at 0.7 MPa): 750 liters/min Material/Finish: ● Body: Aluminum
