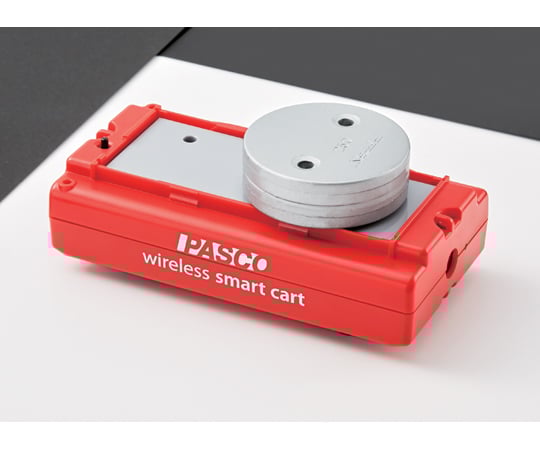

Mechanical Cart Smart Cart ME-1240MS 101-3501 1 set

This single unit is a mechanical cart with built-in sensors that can measure force, position, speed, and acceleration. Simple design With a smart cart and a PC, tablet, or smartphone, you can measure force, position, speed, and acceleration at any time. You can connect via Bluetooth or USB. A variety of measurements can be performed with this one unit Previously, experiments on the relationships between action and reaction, speed, and acceleration required separate devices such as a recording timer, force sensor, or motion sensor, but now the Smart Cart can be used alone. Display measurement data in an easy-to-understand manner Using dedicated software (SPARKvue, Capstone), you can display the change in speed and force over time, and the change in force over position in a graph. Color: Red (with weight*) Force Sensors Measurement range: ±100N Resolution: 0.1 N Maximum sampling rate: 2.0kHz Position Sensors Resolution: ±0.2mm Speed ​​Sensor Maximum measurement speed: ±3m/s Maximum sampling rate: 500Hz Acceleration Sensor Measurement range: ±16g (g=9.8m/s2) Maximum sampling rate: 500Hz Battery: Rechargeable via USB port Compatible software: SPARKvue and Capstone Use of data log: No Connectivity: Bluetooth 4.0 or USB 2.0 Size and weight: Approx. W88 x D185 x H50mm, approx. 250g Accessories: USB cable (approx. 1m), hook, rubber bumper, magnetic bumper Note: The dedicated software "SPARKvue" or "Capstone" is required. Also, if you want to connect to a PC via Bluetooth, a dedicated adapter is required. *The set with weights includes a "Smart Cart," "Weighted Weight (set of 2) φ70×5, weight 0.5kg," and "Sensor and Weight Mounting Plate." *This product is for educational and school use. Product code: 101-3501
