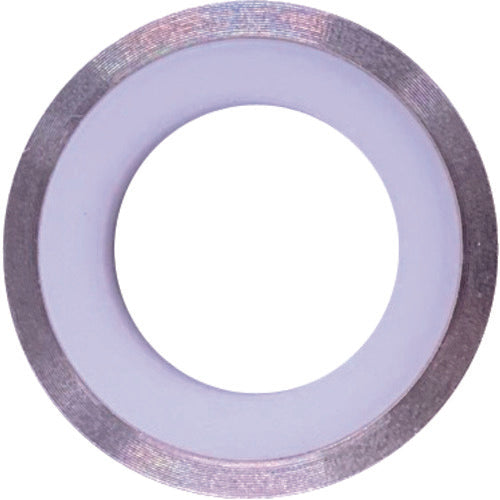

Chiyoda High Pressure Fittings Rinpan (Teflon) RP-T 1 Piece

Catalog number: RP-T Features: ● Prevents gas leakage and foreign matter from entering when used for connecting regulators and connecting pipes. ● Ring prevents packing from expanding, enabling long-term use. Applications: ● For high-pressure fittings. Specifications: ● Connection size: W22 thread 14 ● Maximum operating pressure (MPa): 24.6 ● Operating temperature range (℃): -10 to +60 ● Fluids used: O2, N2, Ar, Air, CO2, etc. ● Material: Teflon ● Compatible size: W22-14 ● Outer diameter (mm): 19.0 ● Inner diameter (mm): 11.5 ● Thickness (mm): 2.7 ● With ring Material/Finish: ● SUS316 ● Teflon Set contents/Accessories: ● None
