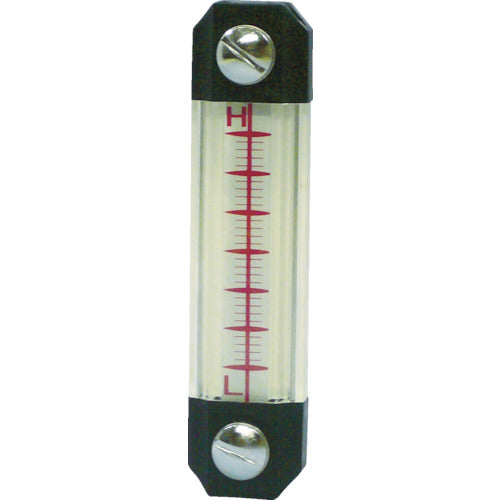

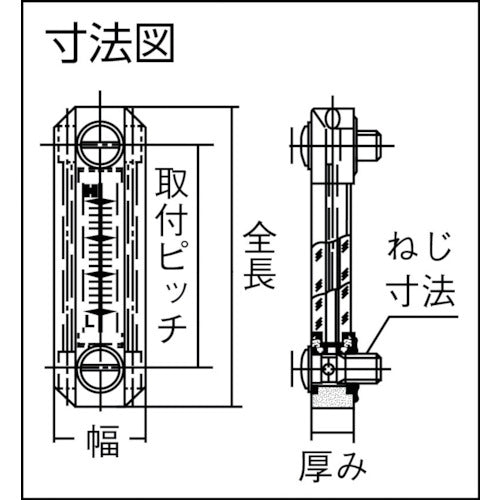

Catalog number: KL-100B Features: ●Special synthetic resin is used for the mounting bolts and set parts, and transparent resin with high impact resistance and little deformation under load is used for the oil window part. Specifications: ●Total length (mm): 126 ●Thickness (mm): 12 ●Width (mm): 30 ●Mounting pitch (mm): 100 ●Screw dimensions: M8 x 1.25 ●Heat resistance temperature (℃): 100℃ ●Screw-fastened type Material/Finish: ●Polycarbonate (PC)/Polyamide (PA)
