Inaba Denko Insulated Drain Hose with Fittings, Hose Length A1000, Suitable Pipe Diameter 20A, DSH-UP20E30S-10, 1 Piece

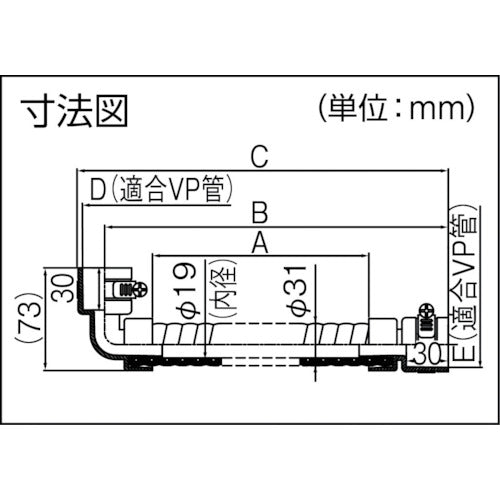

Catalog number: DSH-UP20E30S-10 Features: ●Integrates drain-up piping to reduce labor. ●Reduces the risk of water leakage. Applications: ●Insulated drain hose with fittings for packaged air conditioner drain-up piping. Specifications: ●Hose length A (mm): 1000 ●B (mm): 1086 ●C (mm): 1105 ●D (suitable VP pipe diameter): 26 (20A) ●E (suitable VP pipe diameter): 30A (polyvinyl chloride pipe size 25 with anti-condensation layer) ●Type: Elbow x Straight Material/Finish: ●Insulated drain hose: PVC (insulation material: 30 times expanded PE)/Fitting: PVC/Hose band: SUS/Insulation cover: 30 times expanded PE/Insulated adhesive tape: 30 times expanded PE (t=3)
