Inaba Denko Insulated Drain Hose with Fittings, Hose Length A700 B768, Suitable Pipe Diameter 20A DSH-UP20E25R-07, 1 Piece

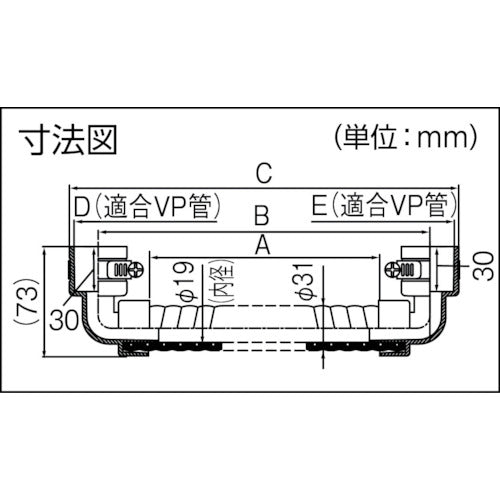

Catalog number: DSH-UP20E25R-07 Features: ●Integrates drain-up piping to reduce labor. ●Reduces the risk of water leakage. Applications: ●Insulated drain hose with fittings for packaged air conditioner drain-up piping. Specifications: ●Hose length A (mm): 700 ●B (mm): 768 ●C (mm): 803 ●D (suitable VP pipe diameter): 26 (20A) ●E (suitable VP pipe diameter): 32 (25A) ●Type: Elbow x elbow Material/Finish: ●Insulated drain hose: PVC (insulation material: 30 times expanded PE)/Fitting: PVC/Hose band: SUS/Insulation cover: 30 times expanded PE/Insulated adhesive tape: 30 times expanded PE (t=3)
