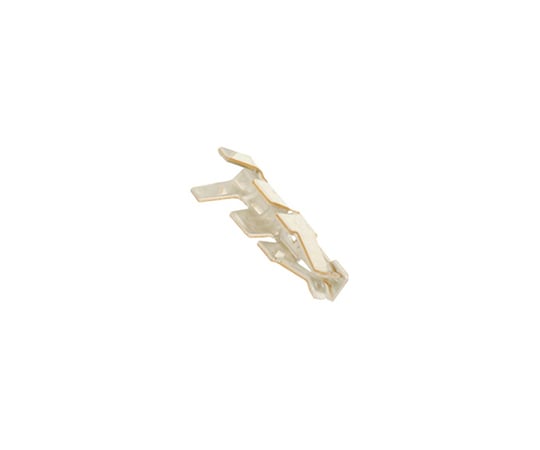

Crimp terminal contact female PA PBV PHD series 1 bag (100 pieces) SPHD-001T-P0.5 1 bag (100 pieces)

JST PHD Series Crimp Contacts Crimp contacts for use in PHD 2.0mm series crimp receptacle housings. The crimp receptacle contacts are made from phosphor bronze with tin plating and accept a wire size range of 28-24 AWG or 26-22 AWG. Hand crimping tool (part number; 688-0880 688-0880) is designed to crimp size 28-24 AWG contacts. Extraction tools are also available (see part number 688-0871 688-0871). Quantity: 1 bag (100 pieces) Male/Female: Female Compatible products: PA, PBV and PHD connector housings Series: PA, PBV, PHD Minimum wire size mm2: 0.1mm2 Maximum wire size mm2: 0.3mm2 Contact plating: Tin Maximum wire size AWG: 22AWG Operating temperature Min: -25°C Operating temperature mAx: +85°C RoHS Compliance Status: Compliant Code number: 688-1381 Form: Chain cut
