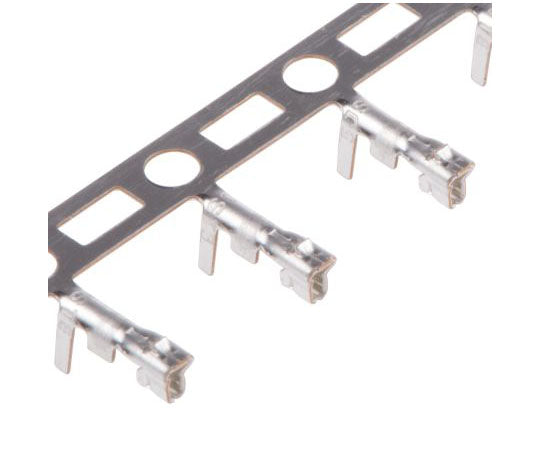

Crimp terminal contact, female, PH series, 1 set (250 pieces) SPH-002T-P0.5S 1 set (250 pieces)

PH Series Wire-to-Board Housing The PH series from JST is a reliable low profile single row housing range for PH series crimp contacts, designed to meet the requirements for high density wiring inside the PCB. Features and Benefits: 2.0mm pitch 2 to 16 positions Always reliable contacts Headers are fully covered to ensure proper connection to mating housing Natural color (white) UL94V-0 flammability rating Quantity: 1 tape (250 pieces) Male/Female: Female Compatible products: PH connector housing Series: PH Minimum wire size mm2: 0.05mm2 Termination method: Crimp Contact plating: Tin Maximum wire size AWG: 24AWG Maximum contact resistance: 20Ω Operating temperature Min: -25°C Operating temperature mAx: 85°C RoHS Compliance Status: Compliant Code number: 123-5948
