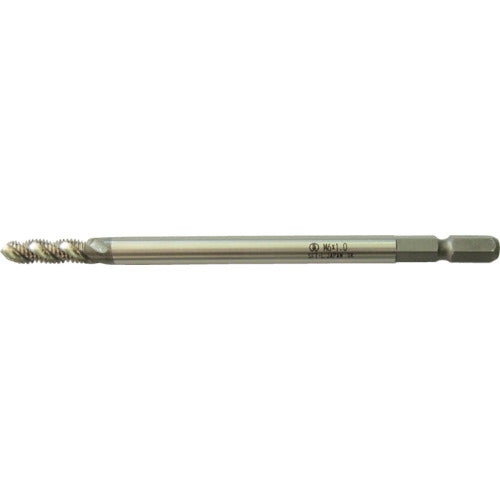

Onishi Hexagonal Shaft Spiral Tap Long Type Nominal Size M5 x Pitch 0.8mm NO28L-M5X0.8 1 Piece

Catalog number: NO28L-M5X0.8 Features: ●Attach to a power tool with forward and reverse rotation such as an impact driver to quickly process threads. ●The shank can be extended to accommodate cases where the threaded part protrudes or is insufficient in length. Applications: ●Formation and correction of threads in blind holes and through holes. ●Workpiece: Iron, aluminum, brass. Specifications: ●Nominal size: M5 ●Pitch (mm): 0.80 ●Thread length (mm): 18 ●Total length (mm): 120 ●Shank diameter (mm): 6.35 (hexagonal shaft) ●Pilot hole diameter (mm): 4.2 ●Machined thread: Metric thread ●Thread length (mm): 18 Material/Finish: ●High-speed steel (HSS) Caution: ●Cannot be used with power tools other than those with forward and reverse rotation. ●When tapping, always use tapping oil (lubricant).
