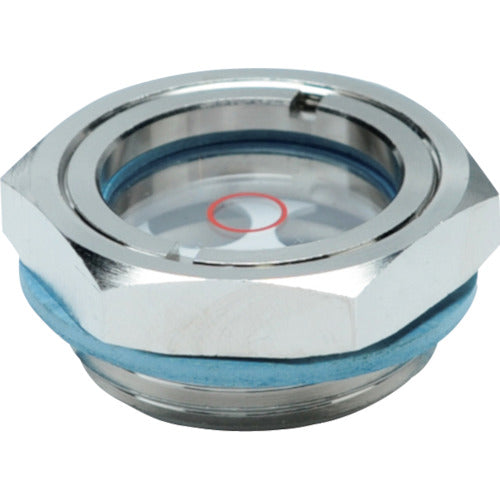

Iehara Light Industry Oil Gauge M Type 3/4 10103000 1 pc

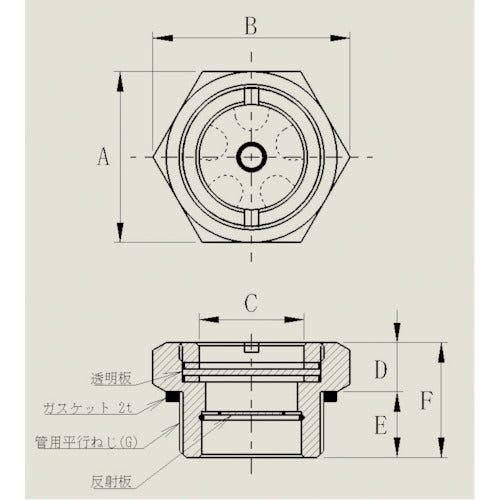

Catalog number: 10103000 Features: ● Made of metal, so there is no need to worry about breakage. ● The transparent plate on the liquid surface is made of polycarbonate resin and is heat resistant up to 130°C. Specifications: ● Thickness (mm): 17.5 ● Mounting screw diameter: G3/4 ● Pressure resistance (MPa): 1.5 (40°C) ● Heat resistance temperature (°C): 130 ● Two-sided width dimension (mm): 32 ● Width (mm): 37 ● A (mm): 32 ● B (mm): 37 ● C (mm): 20 ● D (mm): 7.5 ● E (mm): 10 ● F (mm): 17.5 ● Mounting screw diameter: Pipe parallel screw G3/4 Material/Finish: ● Body: Brass, nickel plating ● Transparent plate: Plastic
