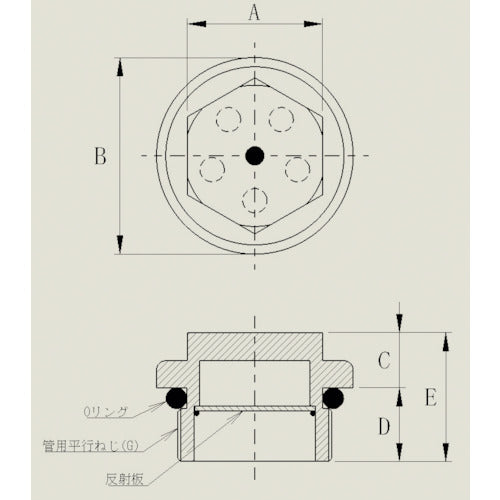

Catalog number: 10204000 Features: ● Transparent plastic makes it easy to see the oil level and the oil volume can be seen from the front and side. Specifications: ● Outer diameter (mm): 39 ● Thickness (mm): 23 ● Mounting thread diameter: G1 ● Pressure resistance (MPa): 0.8 (40℃) ● Heat resistance temperature (℃): 95 ● Two-sided width dimension (mm): 29 ● A (mm): 29 ● B (mm): 39 ● C (mm): 9 ● D (mm): 14 ● E (mm): 23 ● Mounting thread diameter: Pipe parallel thread G1 Material/Finish: ● Transparent plastic ● O-ring: NBR
