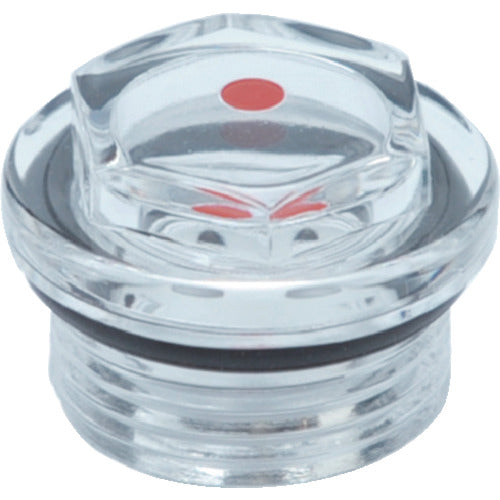

Iehara Light Industry Oil Gauge S-type 3/8 with O-ring groove 10201100 1 piece

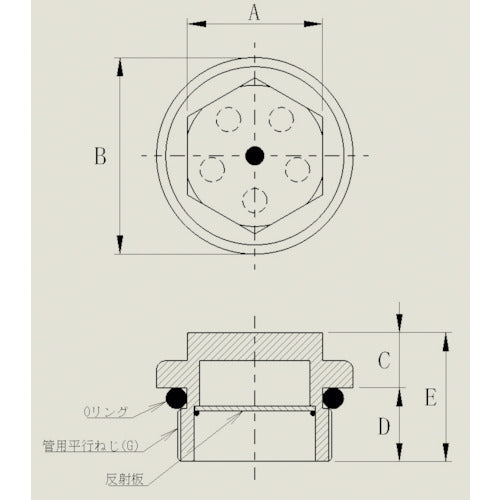

Catalog number: 10201100 Features: ● Transparent plastic makes it easy to see the oil level and the oil volume can be seen from the front and side. Specifications: ● Outer diameter (mm): 22 ● Thickness (mm): 16 ● Mounting thread diameter: G3/8 ● Pressure resistance (MPa): 0.8 (40℃) ● Heat resistance temperature (℃): 95 ● Two-sided width dimension (mm): 14 ● A (mm): 14 ● B (mm): 22 ● C (mm): 6 ● D (mm): 10 ● E (mm): 16 ● Mounting thread diameter: Pipe parallel thread G3/8 Material/Finish: ● Transparent plastic ● O-ring: NBR
