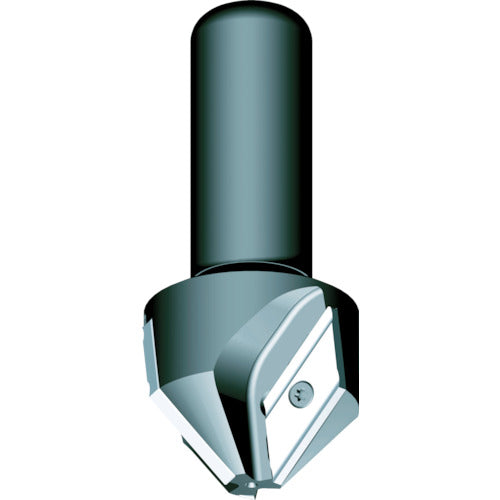

Fujigen Gentlemen 10° NK1074X 1 unit

Catalog number: NK1074X Features: ● Angle can be selected according to the application. ● High-rigidity chamfering cutter with throw-away 3-blade. ● Chamfering processing is possible with a blade length of 30 mm. ● The unique chip breaker makes it easy to process difficult-to-cut materials such as SUS304. Specifications: ● Chamfering diameter (mm): 15.0-74.5 ● Number of blades (pieces): 3 ● Overall length (mm): 135 ● Shank diameter (mm): 32 ● Number of blades: 3 ● Dedicated tip: SPET06T104 ● Tip angle (°): 10 Material/Finish: ● Steel Set contents/Accessories: ● Clamp screw, wrench (tips sold separately)
