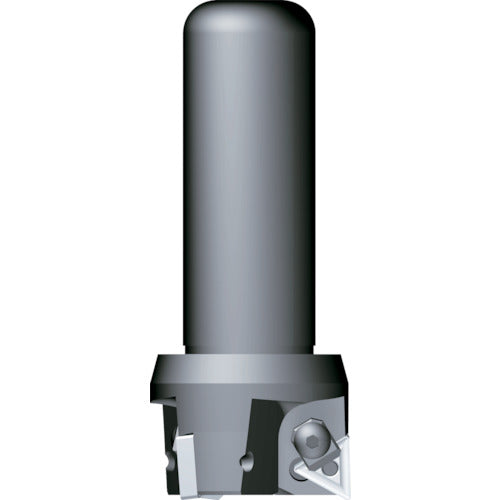

Fujigen Milling Tool Scut Cut Shank φ20 Machining Diameter φ50 NK9050T-20 1 unit

Catalogue number: NK9050T-20 Features: ● Unique mechanism ensures high accuracy of right angles after machining. ● Negative-positive insert allows use of 6 corners on both sides. ● Negative-positive insert allows use of 8 corners on both sides. Applications: ● Shoulder machining. Specifications: ● Number of teeth CICT (pieces): 3 ● Cutting diameter DC (mm): 50 ● Overall length OAL (mm): 120 ● Compatible tip: T33*** ● Shank diameter (mm): 20 ● Angle (°): 90 ● Blade diameter (mm): 50 ● Number of teeth: 3 ● Number of teeth (pieces): 3 ● Overall length (mm): 120 ● Dedicated tip: T33MOR T33MOZ T33GUR Material/Finish: ● Steel
