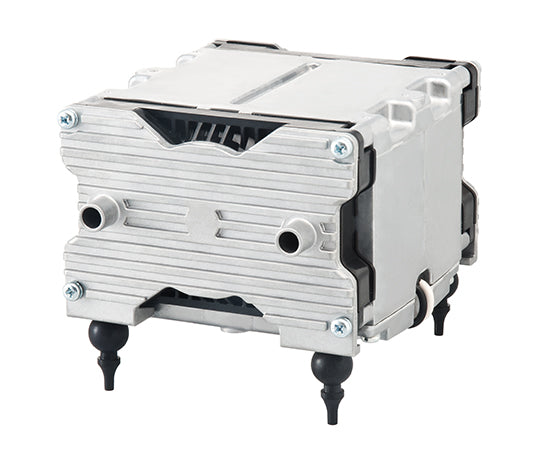

Small air pump (diaphragm type) for both suction and exhaust VP-4020S 1 unit
Small air pump (diaphragm type) for both suction and exhaust VP-4020S 1 unit
Regular price
¥18,700
Regular price
Sale price
¥18,700
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Device built-in specifications.
Uses an electromagnetic diaphragm system.
Compact, low cost, and low noise.
It is also extremely durable.
It can be used for continuous air mat discharge, air bearings, air massagers, physicochemical analysis, and mixing. Model number: VP-4020S
Rated power supply: AC100V
Maximum air volume: [50Hz] 47(-47)L/min [60Hz] 46(-45)L/min
Maximum power consumption: [50Hz] 16W [60Hz] 17W
Noise level: [50Hz] 31.5dBA [60Hz] 34.5dBA
Connection outer diameter: φ10mm
Mass: 1.95kg
*These are reference values (representative values) and are not guaranteed values.
*The pump's operating temperature range is 5℃ to 40℃.
