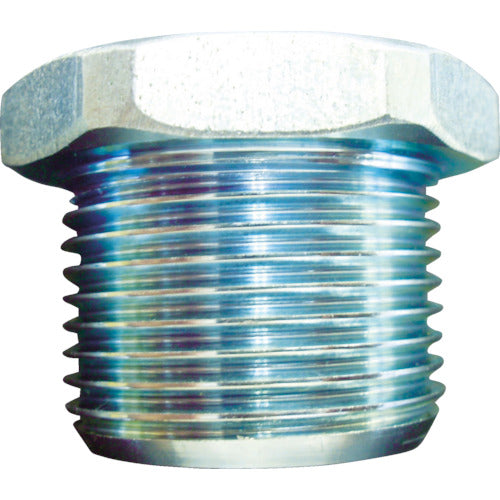

Shimada Steel Explosion-proof Adapter PF1XPF3/4 SA28-22 1 pc

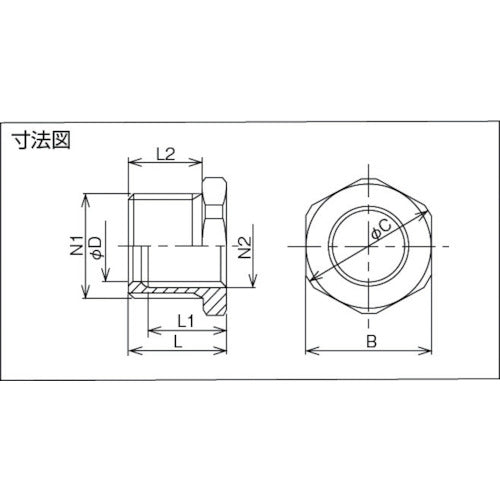

Catalogue number: SA28-22 Features: ●Can be used in Class 1 and 2 hazardous locations. Applications: ●Conduit accessories for explosion-proof electrical work. ●Used when the diameter of the electrical equipment or junction box inlet (hub) and the conduit are different. Specifications: ●Dimensions (mm) B: 35 ●C (mm): 38 ●D (mm): 24.1 ●L (mm): 26 ●N1: PF1 ●N2: PF3/4 ●L1 (mm): 20 ●L2 (mm): 21 ●Structural standard: d2G4 ●B (mm): 35 Material/Finish: ●Steel ●Surface treatment: Zinc plating
