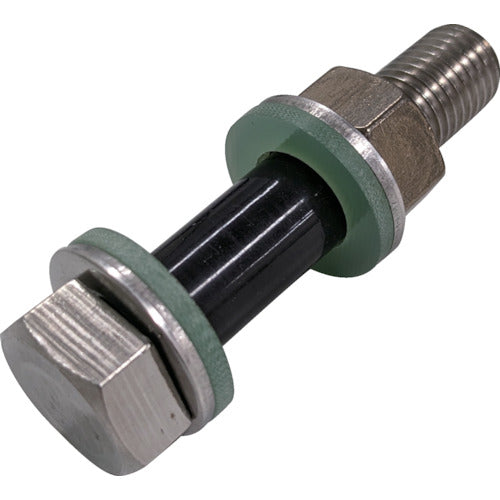

Tomoe Manufacturing Co., Ltd. Insulated bolts and nuts VS2 M16X80 VS16080 1 piece

Catalog number: VS16080 Features: ●Since a resin sleeve is used for the insulation material, insulation failure due to peeling or pinholes does not occur, unlike painting. ●Since the sleeve and the screw outer diameter are almost the same, there is no need to enlarge the bolt hole of the flange. ●The bolt material is stainless steel with excellent corrosion resistance. Applications: ●For general piping that is avoided from direct sunlight such as buildings, water supply and sewerage, and air conditioning. Specifications: ●Dimensions (mm) d: M16 ●Dimensions (mm) L: 80 ●Dimensions (mm) b: 38 ●Dimensions (mm) k: 10 ●Dimensions (mm) m: 13 ●Dimensions (mm) S: 24 ●Dimensions (mm) t1: 3 ●Insulating sleeve outer diameter (mm): 16 ●Insulating washer outer diameter (mm): 30 ●Insulating washer inner diameter (mm): 17 ●Insulating washer thickness (mm): 3 ●Nut thread surface: TOM coating (anti-seizure treatment) ●Compatible with packing thickness of 3 mm. ●Since the flange thickness varies depending on the standards such as JIS B 2220 (steel pipe flange), JIS G3442-2 (iron pipe), JIS G 5527 (ductile cast iron pipe), please contact us to confirm compatibility. ●The dimensions may change depending on the flange dimensions and packing thickness used. ●Please contact us if you are using a special size. ●Please contact us separately if you would like a product that has passed the Japan Water Works Association inspection. ●Standards: JIS B2220, JIS G3442-2, JIS G 5527, etc. Material/Finish: ●Bolts, nuts, protective washers: Stainless steel ●Sleeve: Polyvinyl chloride (PVC) ●Insulating washer: Glass cloth epoxy Set contents/Accessories: ●Bolts, nuts, 2 protective washers, 2 insulating washers, insulating sleeve (already attached to the bolt body) Note: ●Please contact us separately for materials other than stainless steel. ●The dimensions may change depending on the flange dimensions and packing thickness used.
