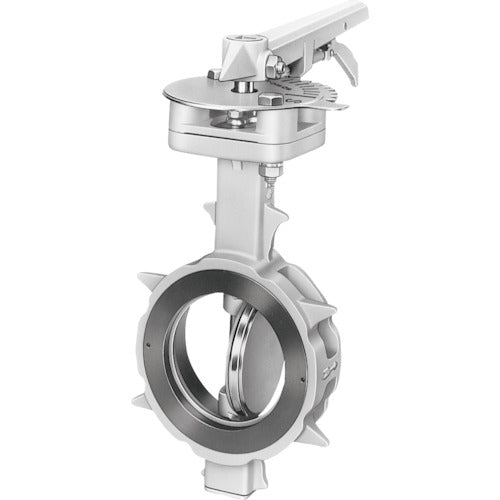

Tomoe Butterfly Valve JIS10K/65A 304YA-1T SCS13A/SCS13A/R-PTFE Lever 304YA-1T-65-SR 1 unit

Catalog number: 304YA-1T-65-SR Features: *Complies with JIS and ISO face-to-face specifications. *Double eccentric structure. *Uses self-aligning valve body structure. *Uses PTFE seat ring for chemical fluid compatibility. *Also suitable for cold and hot water supply. Applications: *General construction. *Industrial use. Specifications: *Nominal diameter A: 65 *Nominal diameter B: 2 1/2 *Height (mm): 291 *d (mm): 73 *D (mm): 115 *L (mm): 46 *Applicable flange standard: JIS10K *Maximum allowable pressure: 1.0MPa *Operating temperature range: -29 to 200°C Materials/Finish: *Body: Stainless steel (SCS13A) *Valve body: Stainless steel (SCS13A) *Seat ring: Fluorine resin (PTFE)
