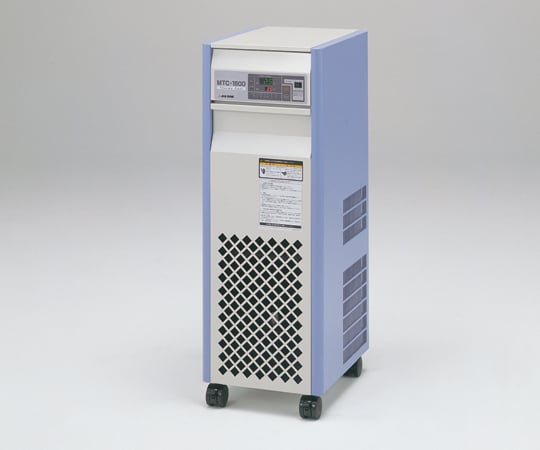

Constant temperature water circulation device 3000W MTC-3000 1 unit

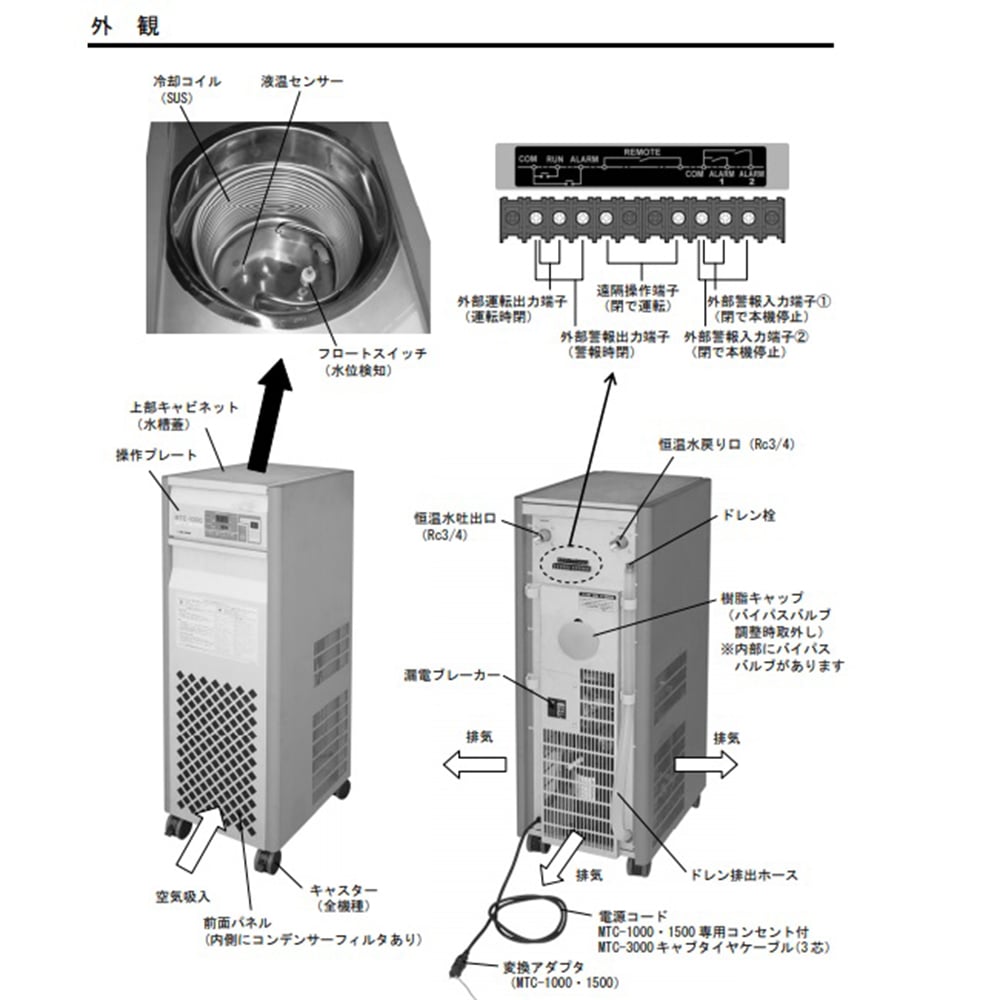

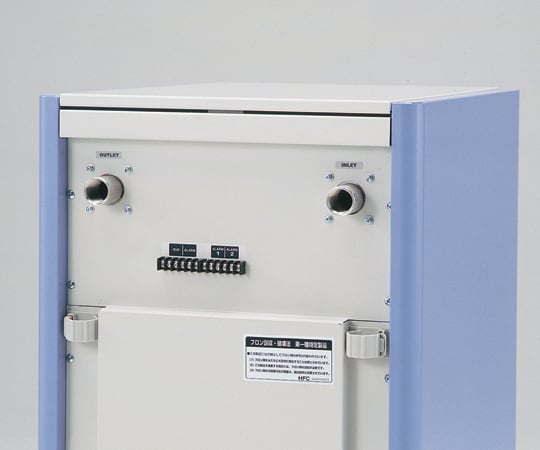

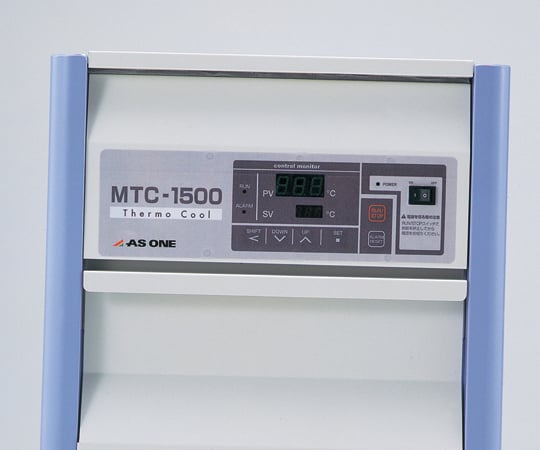

The high-head pump (maximum flow rate 40.7/44.6L/min, maximum head 13.6/19.1m) ensures smooth circulation even when resistance at the destination is high. A bypass valve is standard equipment, allowing rough adjustment of the flow rate. It is also possible to circulate pure water, so it can be used as a cooling device for semiconductor manufacturing equipment. External operation/external alarm output terminals and external alarm input terminals/remote control terminals are standard equipment. The power failure recovery function allows the unit to automatically resume operation even in the unlikely event of a power failure. Model number: MTC-3000 Circulation method: Closed system circulation Performance External circulation capacity (50/60Hz): Maximum flow rate 40.7/44.6L/min, Maximum head 13.6/19.1m (*Performance of the pump alone/at room temperature of 20℃, 50Hz, no load) Cooling capacity: 3000W at liquid temperature 20℃ (room temperature 20℃) function Temperature setting and display: Sheet key input and digital display Safety features: earth leakage breaker, refrigerator overload, high pressure switch, circulation pump overcurrent protection, water level alarm External input/output: External alarm output terminal, external operation output terminal, remote control terminal, external alarm input terminal Components Freezer: 900W Refrigerant: R407C External circulation connection port: Outlet/return port, diameter Rc3/4 Liquid tank: Stainless steel, approx. 32L Electrical Configuration Power supply: Single phase AC200V 50/60Hz Power cord length: 2m (round terminal) Maximum operating current: 8A External dimensions: 430 x 520 x 1110 mm Weight: 80kg Temperature adjustment range (℃): 10 to 30 *Exterior material SUS430 [No.4] specifications are also available. Please contact us for details. This product can be provided with validation services (IQ/OQ). Please feel free to contact us. *Validation service refers to the performance of installation qualification (IQ) and operational qualification (OQ) at the customer's site and the submission of an inspection report.
