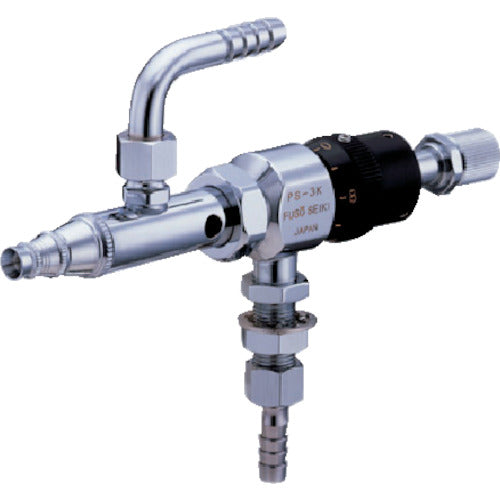

Fuso Lumina automatic spray gun PS-3K type (thin round spray, pencil type) PS-3K 1 unit

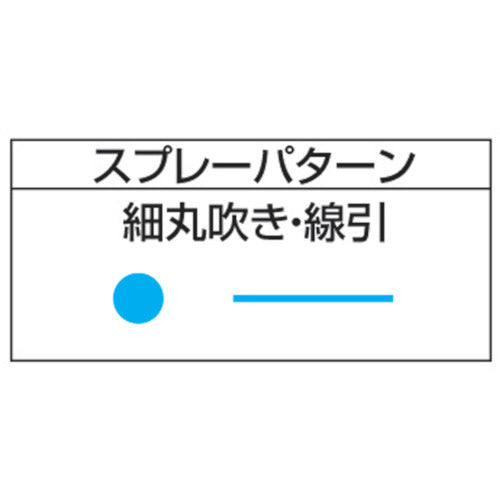

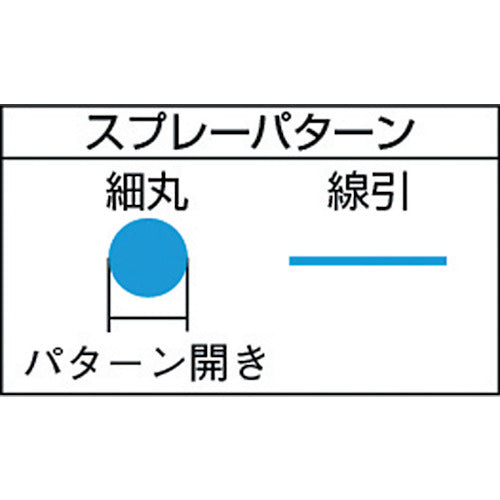

Catalog number: PS-3K Features: ● Suitable for marking dots and line drawing. ● Pinpoint application is possible, and ultra-fine adjustment of the application liquid is possible. Applications: ● Dots and line drawing for marking. Specifications: ● Nozzle diameter (mm): 0.4 ● Attachment port (air/liquid): G1/8 ● Liquid spray volume (ml/min): 0-30 ● Pattern opening (mm): 40 ● Maximum pattern opening (mm): 40 ● Average particle size (μm): 11 ● Particle size (μm): 11 ● Specifications: Ultra-fine round spray using one air hose ● Ultra-fine round spray ● Uses one air hose Material/Finish: ● Body: Chrome-plated brass ● Nozzle: Special alloy ● Needle: Stainless steel (SUS303) Notes: ● Calculated at maximum pattern opening and spray distance of 30 cm. ● Particle size is calculated at a spray distance of 20 cm.
